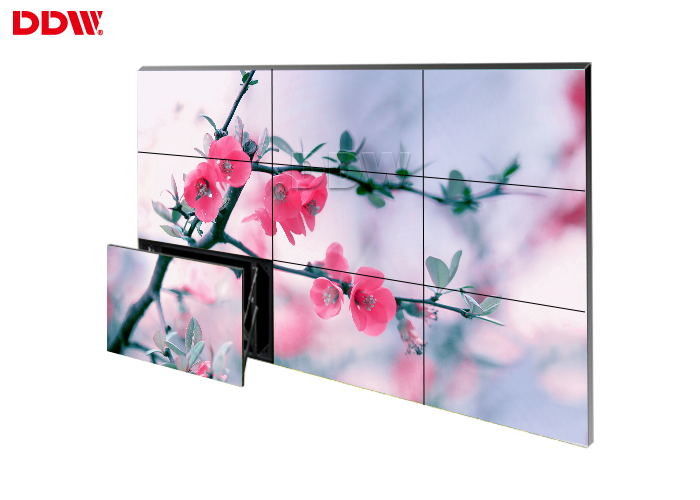

High Resolution DDW LCD Video Wall For Cctv Control Room Conference

High Resolution DDW LCD Video Wall For Cctv Control Room Conference

  • High Resolution DDW LCD Video Wall For Cctv Control Room Conference
High Resolution DDW LCD Video Wall For Cctv Control Room Conference
Product Details:
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN13
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: DDW LCD Video Wall Feature: High Resolution
Application: Cctv Control Room Conference Panel Width: 1020.02 Mm
Panel Height: 574.61 Mm Panel Size: 46 Inch
Highlight:

seamless lcd display

,

multi display video wall

High Resolution DDW LCD Video Wall For Cctv Control Room Conference



DDW LCD Video Wall Introduction



Professional-grade, high-resolution DDW LCD Video Wall are the perfect solution for tiled video wall applications in small to medium-sized control rooms.

The Super narrow bezel series comprises 46", 47'' and 55" LCD displays with LED backlights, combining high brightness and a wide color gamut with an extremely narrow bezel for excellent tiled visual performance.



DDW LCD Video Wall  Applications



This DDW LCD Video Wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.



DDW LCD Video Wall basic informations:

  •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  •  Adapting modular components, making maintenance operations and parts replacement very easily;
  •  The installation method: front push hydraulic pop out;
  •  Dot Pitch: 0.53 mm(H)* 0.53 mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;



DDW LCD Video Wall Specifications



Model No: DDW-LW460HN13
LCD Technology INNOLUX a-Si TFT-LCD
Active Screen Diagonal 46"
TotalBezel Width 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1020.02×574.61x68.1mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Service


Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
