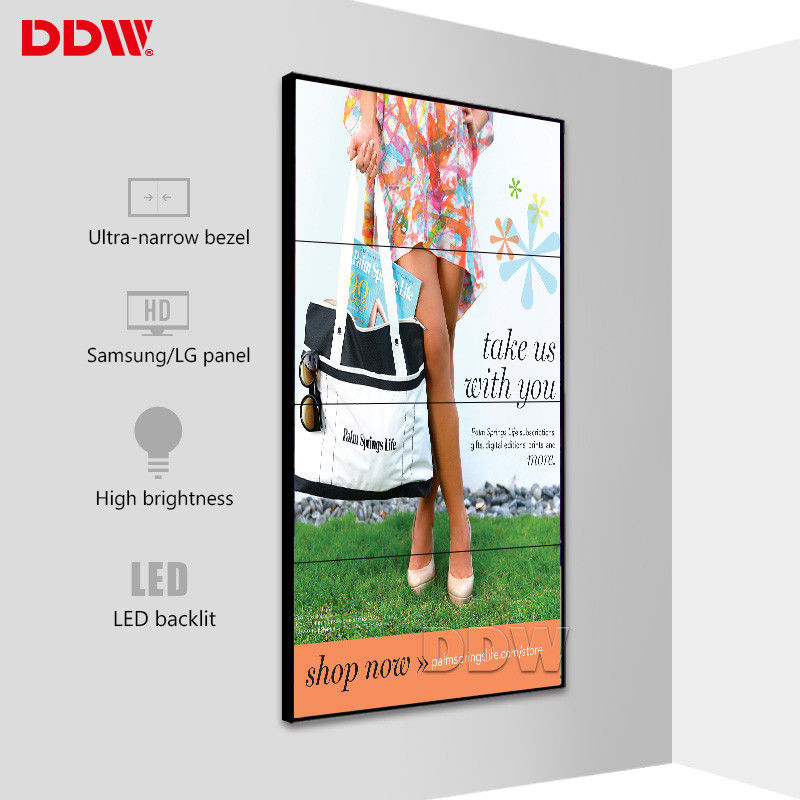

55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast

55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast

    • 55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast
    • 55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast
    • 55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast
    • 55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast
  • 55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550DUN-TKB1

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Viewing Angle: 178x178 Bezel Width: 3.5mm
    Surface: Anti-glare Brightness: 500 Nits
    Product Name: DDW LCD Video Wall Backlight: LED
    Resolution: 1920*1080 Input Voltage: AC 220v-250v

    LW550DUN-TKB1 55 Inch Commercial Video Wall 500 Nits Brightness 4000 / 1 Contrast





    Commercial Video Wall​ basic informations:

    With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;

    Adapting modular components, making maintenance operations and parts replacement very easily;

    The installation method: floor standing;

    Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;

    7x24x365 keep working;



    55inch​ Commercial Video Wall​ main parameters

    1. Original DDW commercial grade lcd video wall display panel

    2. 500 nits brightness,MEGA DCR contrast

    3. FHD physical resolution 1920x1080

    4. Only 3.5mm ultra narrow bezel, high quality ,Practical ,good vision effect.

    5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6. HD video wall unit--- High brightness,high contrast,High gamut .

    7. Flexible structure design ---easy installation ,extensible,arbitrary combination

    8. Stable performance,suitable working for a long time



    Commercial Video Wall​ Key features:

    1. Support a variety of signal ports.

    2. Built-in splicing module, support splice function

    3. Support creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Unique DNX motion supplement image processing technology,

    6. Dynamic image without motion trail

    7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

    8. Input by remote control with wire, mobile receiver head.



    Specifications:

    Model No: DDW-LW550DUN-TKB1
    Active Screen Diagonal 55''
    Total Bezel Width 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 500cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH)

    0.63x0.63 mm

    Active Display Area(WxH)

    1209.6 × 680.4 mm

    Panel Dimension(WxHxD)
    1213.4x684.2x38.9mm
    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    LCD Video Wall Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)





    55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast55 Inch Commercial Video Wall 500 Nits Brightness Anti Glare High Contrast
