    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW460HN11

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Resolution: 1920x1080P 46 Inch Bezel Width: 3.5mm
    Active Area: 1018.08×572.67mm Brightness: 500 Nits
    Product Name: Seamless LCD Video Wall Backlight: LED
    Panel Width: 1021.98mm Panel Height: 576.57mm

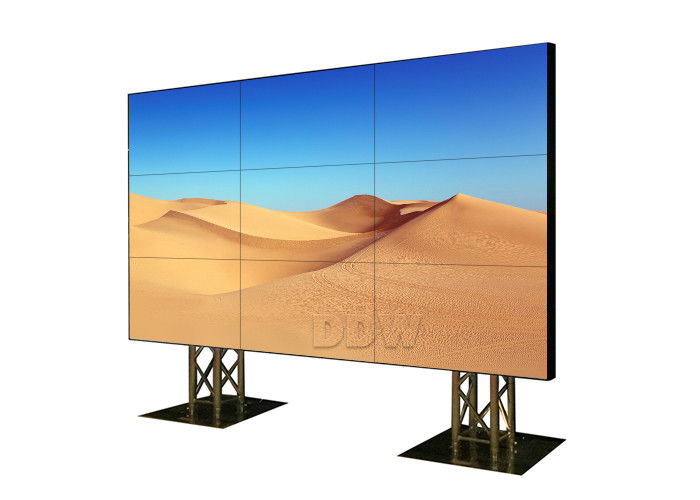

    Full HD Seamless Lcd Video Wall , Office Building 46 Video Wall Display



     main parameters Of Seamless LCD Video Wall



    1. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,High gamut .

    2. FHD physical resolution 1920x1080

    3. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.

    4. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    5. Flexible structure design ---easy installation ,extensible,arbitrary combination

    6. Stable performance,suitable working for a long time.



    Seamless LCD Video Wall Application:

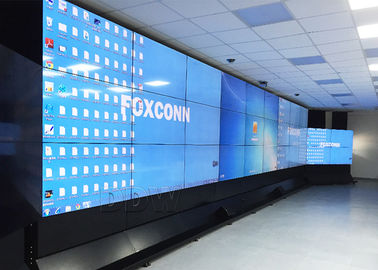

    Seamless LCD Video Wall can be used in below fields: office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



    Seamless LCD Video Wall Key features:



    1. Support a variety of signal ports.

    2. Built-in splicing module, Support splice function

    3. Support creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Unique DNX motion supplement image processing technology,

    6. Dynamic image without motion trail

    7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

    8. Input by remote control with wire, mobile receiver head.



    Seamless LCD Video Wall Specifications



    Model No: DDW-LW460HN11
    LCD Technology Samsung a-Si TFT-LCD
    Active Screen Diagonal 46''
    Panel Dimension(WxHxD) 1021.98mmx576.57mmx72.1mm
    Total Bezel Width 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backlight System LED
    Luminance(nits) 500cd/sqm
    Contrast 3500:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing



    Seamless LCD Video Wall Borad Specifications



    Support PC Color 24bit
    signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    Our Product:



    1) Indoor digital signage systems;

    2) Outdoor LCD digital totems;

    3) UNB LCD video walls;

    4) Hardware video wall controllers;

    5) Stretched bar LCD displays;

    6) Indoor Outdoor LED displays.
