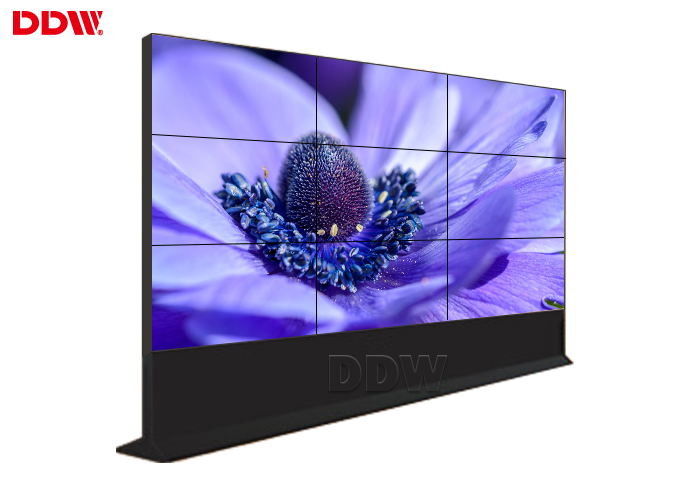

Rich Color Video Display Screen / Floor Standing Outdoor LCD Video Wall

Rich Color Video Display Screen / Floor Standing Outdoor LCD Video Wall

    • Rich Color Video Display Screen / Floor Standing Outdoor LCD Video Wall
  • Rich Color Video Display Screen / Floor Standing Outdoor LCD Video Wall

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW49DUN-THC1

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Name: Video Display Screen Color: Rich Color
    Bezel Width: 3.5mm Surface: Anti-glare
    Brightness: 500 Nits Type: Floor Standing
    Resolution: 1920x1080 Input Voltage: AC 220v-250v
    High Light:

    seamless lcd display

    ,

    frameless lcd display

    Rich Color Video Display Screen / Floor Standing Outdoor LCD Video Wall



    Video Display Screen Selling Points



    1. Product exterior customize,accept new product research and design
    2. Customize splice
    3. HDMI or Matrix connector optional
    4. Samsung or LG panel optional
    5. Factory price,high quality indoor led screen price
    6. lcd video wall,indoor advertising lcd screen,large advertising lcd screens,lcd advertising screen,high brightness did lcd video wall

    Video Display Screen parameters



    1. Original DDW commercial grade lcd video wall display panel

    2. 500 nits brightness,MEGA DCR contrast

    3. FHD physical resolution 1920x1080

    4. Only 3.5mm Ultra narrow bezel, high quality ,Practical ,good vision effect.

    5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6. HD video wall unit--- High brightness,high contrast,high gamut .



    Video Display Screen features:



    1. Support a variety of signal ports.

    2. Built-in splicing module, Support splice function

    3. Support creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Unique DNX motion supplement image processing technology,

    6. Dynamic image without motion trail



    Video Display Screen Specifications:



    Model No: DDW-LW49DUN-THC1
    LCD Technology LG IPS LCD
    Active Screen Diagonal 49"
    Total Bezel Width 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 500cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH) 0.56×0.56mm
    Active Display Area(WxH) 1073..8×604 mm
    Panel Dimension(WxHxD) 1077.6×607.8x55.6mm
    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    Video Display Screen Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)





     Rich Color Video Display Screen / Floor Standing Outdoor LCD Video Wall 0

    Rich Color Video Display Screen / Floor Standing Outdoor LCD Video Wall 1Rich Color Video Display Screen / Floor Standing Outdoor LCD Video Wall 2
