| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-THA3 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Name: | DDW LCD Video Wall | Viewing Angle: | 178x178 |
|---|---|---|---|
| Control Method: | RS232 Control | DPM Select: | Yes |
| Grade: | Commercial Grade | Backlight: | LED |
| Feature: | High Contrast | Cooling: | Low Noise Fans |
| High Light: | frameless lcd display,multi display video wall |
||

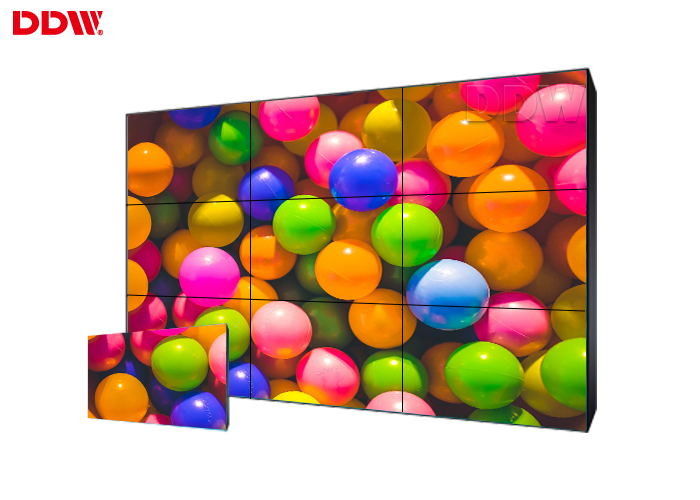

Commercial Grade DDW LCD Video Wall 700 Nits Brightness High Contrast
DDW LCD Video Wall parameters
1. Only 1.8 mm ultra narrow bezel, high quality ,Practical ,good vision effect.
2. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
3. HD video wall unit--- High brightness,high contrast,High gamut .
4. Flexible structure design ---easy installation ,extensible,arbitrary combination
5. Stable performance,suitable working for a long time
DDW LCD Video Wall informations:
Pixel Pitch:0.630mm(H)*0.630mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
DDW LCD Video Wall Key features:
DDW LCD Video Wall Specifications
| Model No: | DDW-LW550DUN-THA3 |
| LCD Technology | LG a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1209.6.x680.4mm |
| Panel Dimension(WxHxD) | 1211.4 x682.2x53.3mm |
| Total Bezel Width | 1.8mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
DDW LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
