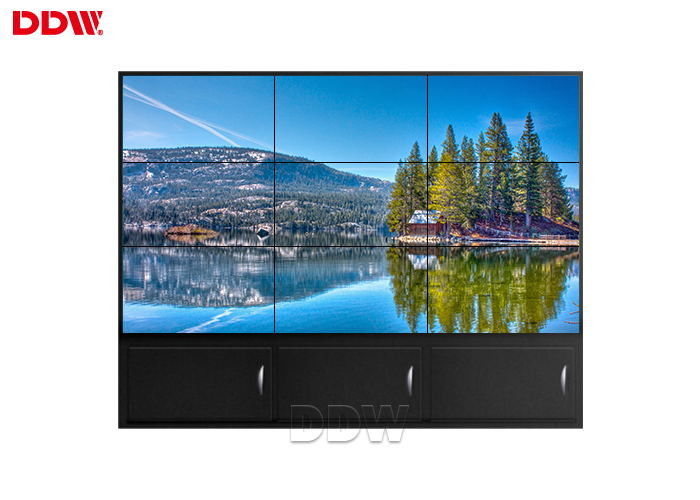

Frameless 3x3 Video Wall / Wireless Control Multi Screen Display Wall

Frameless 3x3 Video Wall / Wireless Control Multi Screen Display Wall

  • Frameless 3x3 Video Wall / Wireless Control Multi Screen Display Wall
Frameless 3x3 Video Wall / Wireless Control Multi Screen Display Wall
Product Details:
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN16
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: 3x3 Video Wall Advantage: Frameless
Total Physical Bezel/mm: 1.7mm Brightness/nits: 500
Panel Width/mm: 1211.54 Panel Height/mm: 682.34
Screen: Multi Screen Display Wall Active Area: 1209.6 × 680.4 Mm
Highlight:

seamless lcd display

,

frameless lcd display

Frameless 3x3 Video Wall / Wireless Control Multi Screen Display Wall



3x3 Video Wall Advantage:



  1. long life, low maintenance costs.
  2. Large viewing angle.
  3. high resolution, beautiful picture.
  4. slim and lightweight.
  5. Low power consumption, low heat.
  6. trouble-free long time, low maintenance costs.
  7. Innovation, advanced
  8. Economic



3x3 Video Wall Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Dynamic image without motion trail



3x3 Video Wall parameters

  •  Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD
  •  500 nits brightness,MEGA DCR contrast
  •  FHD physical resolution 1920x1080
  •  Only 1.7 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
  •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  FHD video wall unit--- High brightness,high contrast,High gamut .
  •  Flexible structure design ---easy installation ,extensible,arbitrary combination
  •  Stable performance,suitable working for a long time



3x3 Video Wall Specifications



Model No:

DDW-LW550HN16

LCD Technology Samsung a-Si TFT-LCD
Active Screen Diagonal 55"
Pixel Pitch(WxH) 0.630x0.630mm
Active Display Area(WxH) 1209.6x680.4mm
Panel Dimension(WxHxD)

1211.54x682.34x68.1mm

Total Bezel Width 1.7 mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 500cd/sqm
Contrast 4000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



3x3 Video Wall Specification



Support PC color 24bit
signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
DVI color 24bit
HDMI Line synchronization range 30-80KHZ
DP Field synchronization range 50-75HZ
Interface input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
