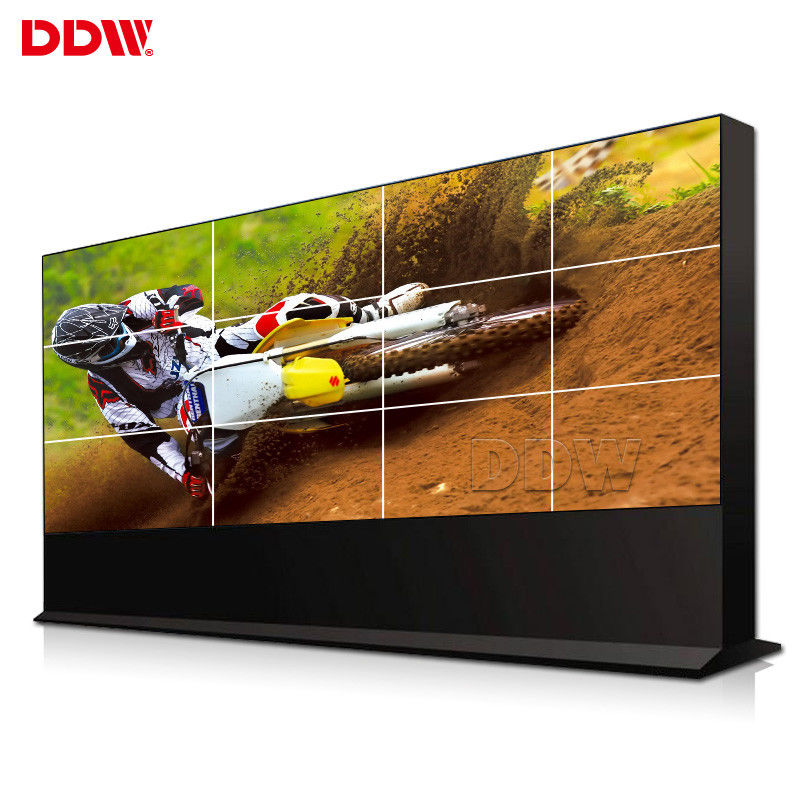

Flexible Structure Multi Display Video Wall , LCD Wall Display Screen 16:9

Product Details:

Place of Origin:	Guangdong , China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 , CE , RoHS , FCC
Model Number:	DDW-LW460HN14

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	Negotiable
Packaging Details:	First layer carton pack with filling foam , then wood pallet pack
Delivery Time:	3 working days upon payment
Payment Terms:	T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability:	3 , 000pcs per month

Contact Now

Detailed Product Description

Brightness/nits:	500	Bezel Width:	1.7 Mm
Product Name:	Multi Display Video Wall	Color:	8Bit , 16M
Aspect Ratio:	16:9	White Point:	10,000 K
Refresh Rate:	60Hz	Active Area:	1018.08×572.67mm
Highlight:	seamless lcd display , frameless lcd display

Flexible Structure Multi Display Video Wall , LCD Wall Display Screen 16:9

Multi Display Video Wall Introduction

Narrow Bezel:

46 inch LCD video wall narrow bezel available: 1.7 mm, 3.5 mm, 5.3mm;
3×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;

View Angle

178 degree wide viewing angle, the full range of display;
Different modules optional: such as heating module, built in camera, air conditioner etc;

HD Panel Display

HD video wall unit: high brightness, contrast and gamut.
Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;

Functions:

Supporting 225 units (15×15) multi-matrix;
Single screen display. Each unit can display the picture independently;
Image overlay. Superimposed on screen another picture;
Easy to choose full screen or multi-screen display by control video wall controller.

Panel dimension and interfaces:

Dimension: 1021.98 x 576.57 mm;
Interface: HDMI, DVI, VGA, CVBS, Cable, USB, Switch, Power Supply;

Total bezel width

Bezel size: 3.5 mm;
The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

Specifications:

Model No:	DDW-LW460HN14
Active Screen Diagonal	46"
Bezel Width	Total: 1.7 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Pixel Pitch(WxH)	0.53×0.53 mm
Active Display Area(WxH)	1018.08×572.67 mm
Panel Dimension(WxHxD)	1020.02×574.61x68 mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)

Service

Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.

DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
