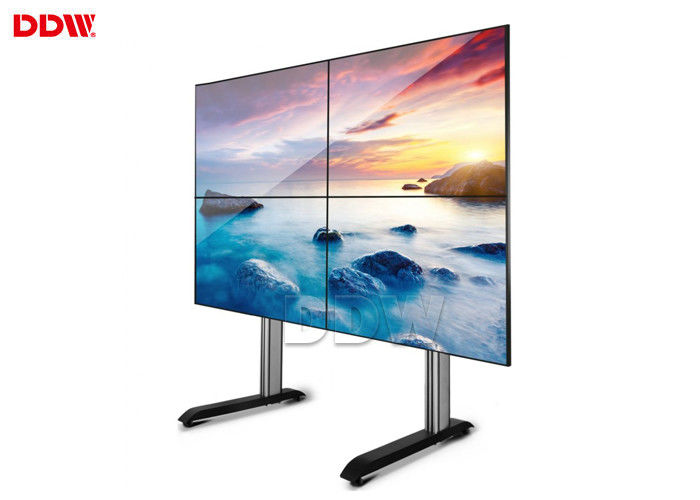

Good Vision Effect Hdmi Video Wall , Show Center LCD Wall Display 1.07GB Colors

Good Vision Effect Hdmi Video Wall , Show Center LCD Wall Display 1.07GB Colors

  • Good Vision Effect Hdmi Video Wall , Show Center LCD Wall Display 1.07GB Colors
Good Vision Effect Hdmi Video Wall , Show Center LCD Wall Display 1.07GB Colors
Product Details:
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV550FHM-NV3
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Panel Size: 55 Inch Bezel Width: 3.5mm
Brightness: 700 Nits Product Name: Commercial Video Wall
Color: 8Bit , 16M Aspect Ratio: 16:9
Panel Width/mm: 1213.5 Panel Height/mm: 684.3
Highlight:

lcd screen wall

,

seamless lcd video wall

Good Vision Effect Hdmi Video Wall , Show Center LCD Wall Display 1.07GB Colors





Hdmi Video Wall Key features



1. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

2. HD video wall unit--- High brightness,high contrast,high gamut .

3. Flexible structure design ---easy installation ,extensible,arbitrary combination

4. Stable performance,suitable working for a long time

5. Original DDW commercial grade lcd video wall panel ,16:9 Innolux a-Si TFT-LCD

6. 700nits brightness,5000:1 contrast

7. Only 3.5mm ultra narrow bezel.high quality ,Practical ,good vision effect.



Service


Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.


DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.



Hdmi Video Wall Specifications



Model No: DDW-DV550FHM-NV3
Active Screen Diagonal 55"
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/㎡
Contrast 5000:1
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1213.5x684.3x60.39mm

White Point 10,000 K
Display Colors 1.07GB colors
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption ≦160W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0℃~50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Hdmi Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
