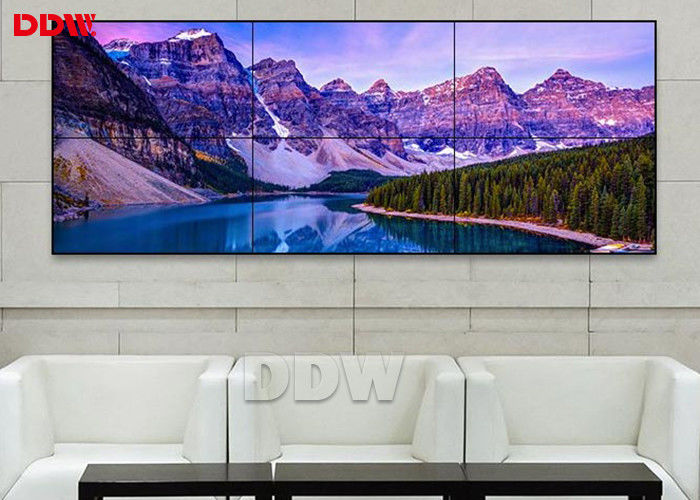

High Resolution 55 Inch DDW LCD Video Wall Support Matrix Joint Control

High Resolution 55 Inch DDW LCD Video Wall Support Matrix Joint Control

  • High Resolution 55 Inch DDW LCD Video Wall Support Matrix Joint Control
High Resolution 55 Inch DDW LCD Video Wall Support Matrix Joint Control
Product Details:
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN11
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Interactive Video Wall Backlight: LED
Active Area: 1209.6 × 680.4 Mm Refresh Rate: 60Hz
Response Time: <=6ms Display Colors: 8Bit,16.7M
Power Supply: AC100~240V 50/60 HZ Cooling: Low Noise Fans
Highlight:

interactive video display

,

interactive touch screen video wall

High Resolution 55 Inch DDW LCD Video Wall Support Matrix Joint Control





55 Inch DDW LCD Video Wall Introduction



55 Inch DDW LCD Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



55 Inch DDW LCD Video Wall Key features:

1. Built-in splicing module, Support splice function

2. Support creating one window PIP across the screen, roaming service, scaling,PIP

3. Unique DNX motion supplement image processing technology,

4. Dynamic image without motion trail

5. Splicing image processing RS-232 RJ45 loop-circuit input/output.

6. Input by remote control with wire, mobile receiver head.



55 Inch DDW LCD Video Wall main parameters

  •  500 nits brightness,MEGA DCR contrast
  •  FHD physical resolution 1920x1080
  •  Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
  •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  FHD video wall unit--- High brightness,high contrast,High gamut .
  •  Flexible structure design ---easy installation ,extensible,arbitrary combination
  •  Stable performance,suitable working for a long time



55 Inch DDW LCD Video Wall Specifications



Model No:

DDW-LW550HN11

LCD Technology Samsung a-Si TFT-LCD
Active Screen Diagonal 55"
Pixel Pitch(WxH) 0.630x0.630mm
Active Display Area(WxH) 1209.6x680.4mm
Panel Dimension(WxHxD) 1213.5x684.3x67.7mm
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 500cd/sqm
Contrast 4000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



55 Inch DDW LCD Video Wall Board Specification



Support PC color 24bit
signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
DVI color 24bit
HDMI Line synchronization range 30-80KHZ
DP Field synchronization range 50-75HZ
Interface input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
