Ultra Thin Interactive Video Wall 55 Inch For Advertising 1920x1080

Product Details:

Place of Origin:	Guangdong , China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 , CE , RoHS , FCC
Model Number:	DDW-LW550HN16

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	Negotiable
Packaging Details:	First layer carton pack with filling foam , then wood pallet pack
Delivery Time:	3 working days upon payment
Payment Terms:	L/C , L/C , T/T
Supply Ability:	3 , 000pcs per month

Contact Now

Detailed Product Description

Product Name:	Interactive Video Wall	Feature:	Ultra Thin
Panel Size:	55 Inch	Max Resolution:	1920x1080
Pixel Pitch:	0.63x0.63mm	Contrast Ratio:	4000:1
Brightness:	500nits	Application:	Indoor Advertising
High Light:	interactive video display , interactive touch screen video wall

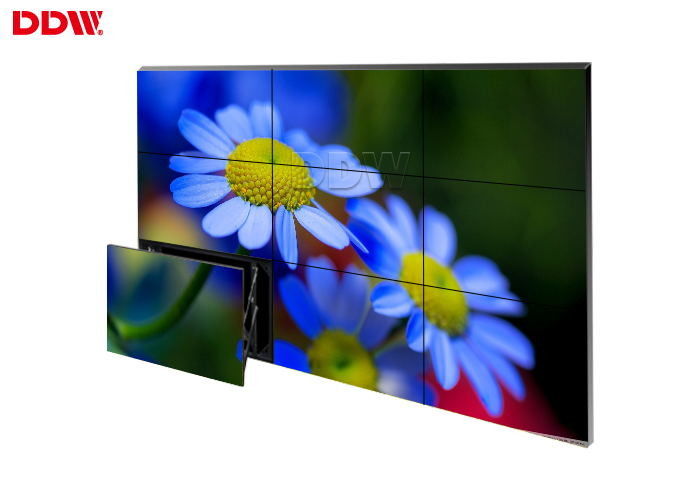

Ultra Thin Interactive Video Wall 55 Inch For Advertising 1920x1080

Interactive Video Wall Introduction :

1, Original 55 inch DDW industrial grade LCD video wall panel,16:9 LG a-Si TFT-LCD

2, Only 1.7mm ultra narrow bezel.high quality ,Practical ,good vision effect.

3, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

4, FHD video wall unit--- High brightness,high contrast,High gamut .

5, Flexible structure design ---easy installation ,extensible,arbitrary combination

Interactive Video Wall Details

Total bezel width: 1.7mm

Resolution: 1920*1080

Contrast: 4000:1

Surface: anti-glare

Video wall monitor power consummtion:250W

Application condition: indoor and semi-outdoor

Interactive Video Wall Applications

This Interactive Video Wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.

Interactive Video Wall Specifications

LCD Technology	SAMSUNG DID LCD
Active Screen Diagonal	55"
Bezel Width	Total: 1.7mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Pixel Pitch(WxH)	0.63×0.63mm
Active Display Area(WxH)	1209.6 × 680.4 mm
Panel Dimension(WxHxD)	1211.54×682.34x68.1mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F

Facilities:

We group companies own following facilities to accomplete the business:

1) 2500㎡ production department

2) Our own metal factory 3000㎡

3) Our own panel warehouse 1500㎡

All departments R&D Technical, Purchase, Production (Assemble-QC-Packing-Shipping-Aftersales), Domestic & Overseas Sales, Merchandiser and Public Relationship joint corporately & effectively.

Ultra Thin Interactive Video Wall 55 Inch For Advertising 1920x1080 0
