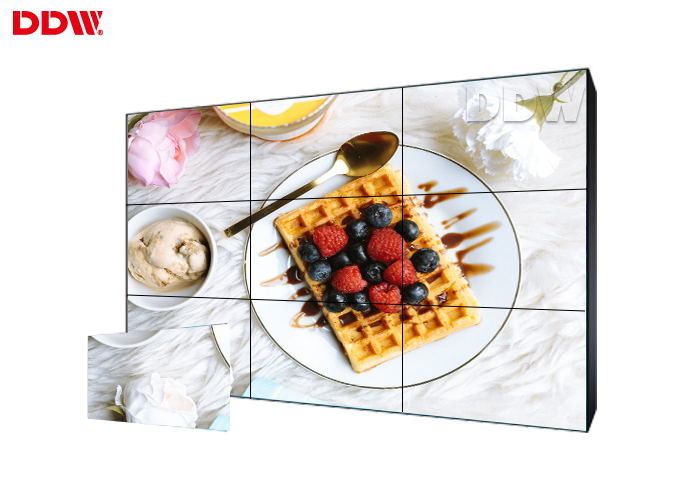

Indoor Outdoor Seamless LCD Video Wall / HDMI Ultra Narrow Bezel Video Wall

Product Details:

Place of Origin:	Guangdong , China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 , CE , RoHS , FCC
Model Number:	DDW-LW460HN14

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	Negotiable
Packaging Details:	First layer carton pack with filling foam , then wood pallet pack
Delivery Time:	3 working days upon payment
Payment Terms:	L/C , L/C , T/T
Supply Ability:	3 , 000pcs per month

Contact Now

Detailed Product Description

Product Name:	Seamless LCD Video Wall	Application:	Indoor Outdoor
Resolution:	1920*1080	Backlit Type:	LED
Surface:	Anti-glare	Refresh Rate:	60Hz
Brightness:	500nits	Advantage:	Ultra Narrow Bezel Video Wall
High Light:	interactive touch screen video wall , interactive wall display

Indoor Outdoor Seamless LCD Video Wall / HDMI Ultra Narrow Bezel Video Wall

Seamless LCD Video Wall Application

Office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

Seamless LCD Video Wall features:

Built-in splicing module, Support splice function

Support creating one window PIP across the screen, roaming service, scaling,PIP

Support matrix joint control.

Unique DNX motion supplement image processing technology,

Dynamic image without motion trail

Splicing image processing RS-232 RJ45 loop-circuit input/output.

Input by remote control with wire, mobile receiver head.

Seamless LCD Video Wall parameters

1, Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2, 500nits brightness,MEGA DCR contrast
3, FHD physical resolution 1920x1080
4, Only 1.7mm ultra narrow bezel, high quality ,Practical ,good vision effect.
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, HD video wall unit--- High brightness,high contrast,high gamut .

Seamless LCD Video Wall Specifications:

Name	Indoor Outdoor Seamless LCD Video Wall / HDMI Ultra Narrow Bezel Video Wall
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Panel Dimension(WxHxD)	1020.02×574.61x68mm
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

Seamless LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
