Place of Origin: | Guangdong , China (Mainland) |
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW460HN09 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | L/C , L/C , T/T |
Supply Ability: | 3 , 000pcs per month |
Product Name: | 3x3 Video Wall | Panel: | Samsung Panel |
---|---|---|---|
Total Physical Bezel: | 5.3mm | Color: | 8Bit,16.7M |
Daisy Chain: | RJ45 Loop | Input Voltage: | 230W |
Surface: | Anti-glare | Advantage: | High Brightness |
High Light: | interactive video display,interactive touch screen video wall |

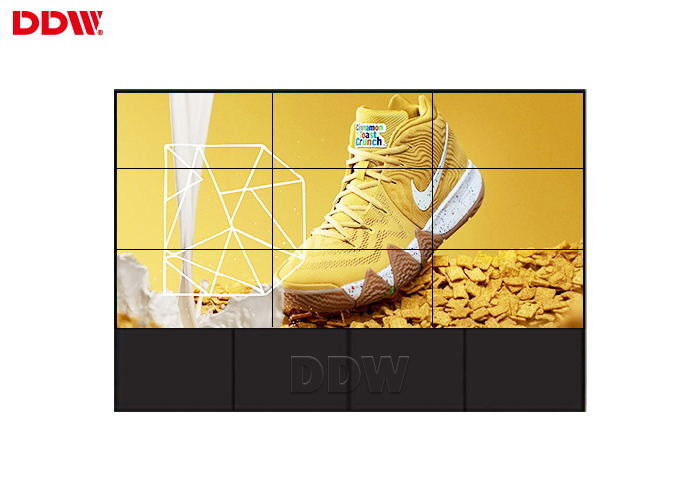

High Brightness 3x3 Video Wall / Samsung Panel Touch Screen Wall Display
3x3 Video Wall Introduction
46" 3x3 Video Wall is one of DDW most popular video wall panels which has 5.3mm ultra narrow bezel,FHD1920x1080 resolution,and 500nits brightness,it's one of first Samsung general videowall panels in the world.
DDW lcd video wall can be used in below fields: Conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.
3x3 Video Wall Features:
Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.
Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
HD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design ---easy installation ,extensible,arbitrary combination
Stable performance,suitable working for a long time
3x3 Video Wall Specifications
1. - LED backlight 500nits brightnes
2. - 100% New Samsung screen
3. Origianl Samsung DID panel
4. 5.3mm ultra narrow bezel lcd video wall screen
5. The world first &Best seller lcd video wall screen!!
6. Most cost-effective lcd video wall solution screen in the world
7. Model No.: DDW-LW460HN09
3x3 Video Wall Specifications
Active Screen Diagonal | 46" 16:9 |
Bezel Width | Total: 5.3 mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | LED |
Luminance(nits) | 500cd/sqm |
Contrast | MEGA DCR |
Viewing Angle | H 178°|V 178° |
Panel Dimension(WxHxD) | 1023.98×578.57x79.5mm |
White Point | 10,000 K |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | lower than 250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 0.85 |
Storage Temperature | -20-60°C | -4-140°F |
Storage Humidity | 85% non-condensing |
3x3 Video Wall Board Specifications
Support | PC | Color | 24bit |
Signal | Line synchronization range | 30-80KHZ | |
Field synchronization range | 50-75HZ | ||
DVI HDMI DP |
Color | 24bit | |
Line synchronization range | 30-80KHZ | ||
Field synchronization range | 50-75HZ | ||
Interface | Input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
Output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out | ||
Power | Input power | DC24V/12V/5V | |
Drive panel | 5V/12V | ||
Power mode | Normal working mode, power saving mode | ||
Other | OSD | Chinese, English and other languages (other languages can be added as required) |
