Place of Origin: | Guangdong , China (Mainland) |
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-DV490FHM-NV0 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | L/C , L/C , T/T |
Supply Ability: | 3 , 000pcs per month |
Product Name: | Touch Screen Wall Display | Feature: | Flexible |
---|---|---|---|
Resolution: | 1920*1080 | Backlit Type: | LED |
Panel Width: | 1077.6mm | Panel Height: | 607.8mm |
Surface: | Anti-glare | Refresh Rate: | 60Hz |
Highlight: | interactive touch screen video wall,interactive wall display |

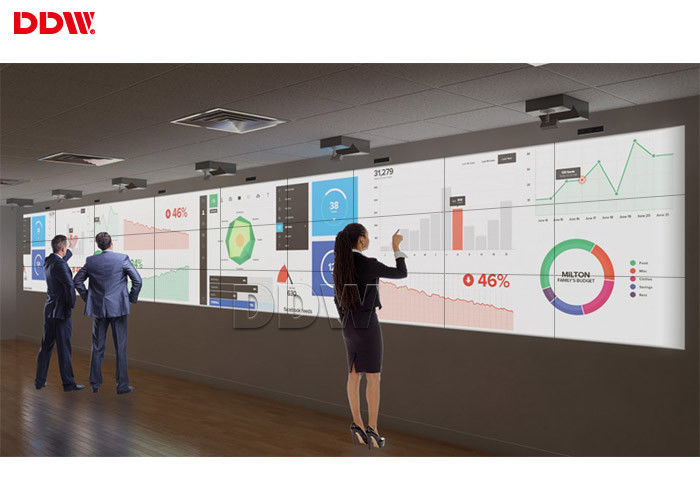

Flexible Touch Screen Wall Display , LCD Video Wall Display 3.5 Mm Bezel
Touch Screen Wall Display Key features:
1. Built-in splicing module, Support splice function
2. Support creating one window PIP across the screen, roaming service, scaling,PIP
3. Unique DNX motion supplement image processing technology,
4. Dynamic image without motion trail
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
6. Input by remote control with wire, mobile receiver head.
Touch Screen Wall Display main parameters
1, Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2, Only 3.5mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
3, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
4, Flexible structure design ---easy installation ,extensible,arbitrary combination
5, Stable performance,suitable working for a long time.
Touch Screen Wall Display can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
LCD Video Wall Board Specifications
Support | PC | Color | 24bit |
Signal | Line synchronization range | 30-80KHZ | |
Field synchronization range | 50-75HZ | ||
DVI HDMI DP |
Color | 24bit | |
Line synchronization range | 30-80KHZ | ||
Field synchronization range | 50-75HZ | ||
Interface | Input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
Output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out | ||
Power | Input power | DC24V/12V/5V | |
Drive panel | 5V/12V | ||
Power mode | Normal working mode, power saving mode | ||
Other | OSD | Chinese, English and other languages (other languages can be added as required) |
