Good Vision Effect Interactive Video Wall With Ultra Narrow Bezel 1.7mm

Good Vision Effect Interactive Video Wall With Ultra Narrow Bezel 1.7mm

Good Vision Effect Interactive Video Wall With Ultra Narrow Bezel 1.7mm

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN14

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Huge Video Wall Type: TFT
Panel Size: 55 Inch Max Resolution: 1920x1080
Brightness: 700nits Response Time: 5ms
Input Voltage: AC 110-240V Feature: Good Vision Effect

Good Vision Effect Interactive Video Wall With Ultra Narrow Bezel 1.7mm
Huge Video Wall Quick Details
Input Voltage: AC 110-240V
Brightness: 700nits
Total bezel width: 1.7mm
Resolution: 1920*1080
Contrast: 4000:1
Surface: anti-glare
Video wall monitor power consummtion:250W
Application condition: indoor and semi-outdoor
Huge Video Wall features:
1, Original Industrial grade LCD video wall panel,16:9 LG a-Si TFT-LCD
2, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
3, FHD video wall unit--- High brightness,high contrast,High gamut .
4, Flexible structure design ---easy installation ,extensible,arbitrary combination
5, Stable performance,suitable working for a long time

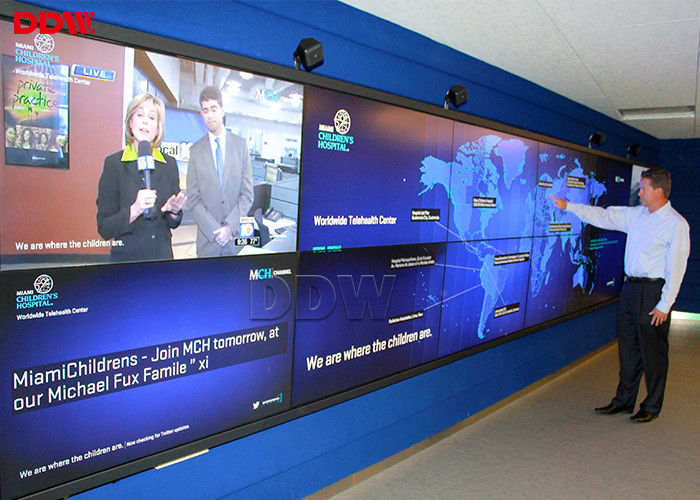

Huge Video Wall Applications
Huge Video Wall is the best cost-effective model , which can be widely used for CCTV control room Conference and meeting rooms , GYM center , Lobbies , Security Monitoring Center , Surveillance and Retail Center , Restaurant and hotel , Retail Shopping Mall Advertising and information Displays , Public Installations , Exhibition and show center , Live show , Rental and advertising Center , Museums , Church , Transportation and Mass Info Display systems.
Huge Video Wall Specifications

Active Screen Diagonal55" 16:9
Bezel WidthTotal: 1.7mm
Aspect Ratio16:9
Physical Resolution1920x1080
Backight SystemLED
ContrastMEGA DCR
Viewing AngleH 178°|V 178°
Pixel Pitch(WxH)0.63×0.63mm
Active Display Area(WxH)


Panel Dimension(WxHxD)1211.4×682.2x65.1mm
White Point10,000 K
Display Colors8Bit,16.7M
Refresh Rate60Hz
Response Time<=6ms
MTBF> 100,000 h
Standby Power Consumption<3W
Maximum Power Consumptionlower than 250W
Power SupplyAC100~240V 50/60 HZ
CoolingLow noise fans
Heat Dissipation819 BTU/h (max)
Working Time Capacity7x24x365hours
Application AreaIndoor/Semi Outdoor
Working Temperature0°C~50°C
Working Humidity0.85
Storage Temperature-20-60°C | -4-140°F
Storage Humidity85% non-condensing

Huge Video Wall Specifications

Signal Line synchronization range30-80KHZ
Field synchronization range50-75HZ




Line synchronization range30-80KHZ
Field synchronization range50-75HZ
InterfaceInputVGA x 115pin D-Sub
DP x 1Display Port
HDMI x 2HDMI-19 pin
OutputPANELLVDS 36Pin/2.0
DP outDP loop out
PowerInput powerDC24V/12V/5V
Drive panel5V/12V
Power modeNormal working mode, power saving mode
OtherOSDChinese, English and other languages (other languages can be added as required)

Packaging & Delivery
Packaging Details: quality carton with full wood box packing
Delivery Detail: 3 working days
 Good Vision Effect Interactive Video Wall With Ultra Narrow Bezel 1.7mm
