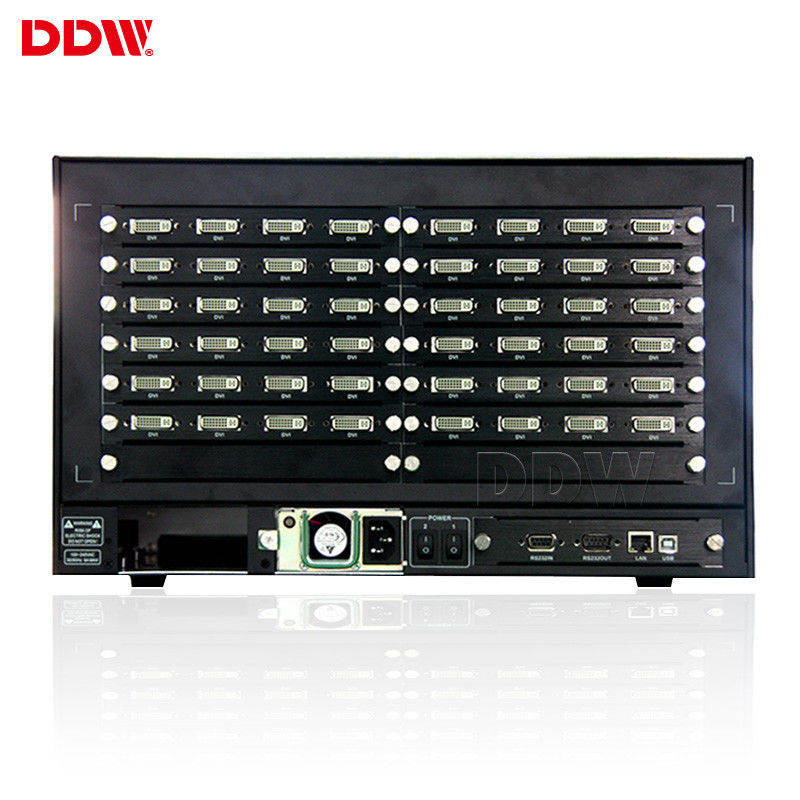

LCD Video Wall Processor Dp 4K DVI HDMI SD Input Android IOS Control 32bit
LCD Video Wall Processor application:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
LCD Video Wall Processor key features:
1, Compact and expandable inputs and outputs
40 input channels , can be extended up to 18 or 36 output channels , you can realize a large-scale multi-display system in a compact one-unit housing.
2, Power-saving design
Build-in power-saving graphics board and parts reduction effect by one unit structure design.
3, Easy Replacement
Rear detachable input-output board introduction and expansion can be easily.
User can replace the input and output board with a single unit without removing the entire chassis from the rack.
4, 2 split ~ 4 split display function (one single screen)
One single screen up to 4 signal source simultaneously input , it can be layout in any pattern and superimposed images.
5, Video Wall configuration support
iMAX-5000 series , which has built-in the high resolution of digital image processor , supports both of the matrix and mosaic video wall configuration.
6, Seamless Switching Processor Inside
No joints , no black screen , smooth video switching processor inside.
DDW Video Wall Processor Technical Specifications
| Model series |
With CBD |
Function |
No CBD |
| Function description |
4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show differentsigal at the same time to the system,require screen built in daisy chain board |
~ |
16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) |
CVBS |
Support PAL/NTSC format, multiple BNC ports |
~ |
| VGA/RGBHV |
Multi-channel VGA DB-15 ports, support VGA full-format input |
~ |
| HDMI, DVI, 4K-DVI, IP |
Support 4K(3840x2160) input, each IP decode 4 channels |
~ |
| YPbPr, YCbCr(customizable) |
The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV |
~ |
| SDI(customizable) |
BNC Port |
~ |
| AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; |
~ |
~ |
| Input resolution |
up to 4K,commonly used resolutions |
| Output signal format |
VGA, RGBHV |
signal channel XGA(1024x768@60Hz)/DB-15 port |
~ |
| HDMI, DVI, 4K-DVI |
HDMI, DVI output |
~ |
| 3G SDI(customzable) |
BNC Port loop out |
~ |
| AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; |
~ |
~ |
| Output resolution |
up to 4K,commonly used resolutions |
| Control |
Standard RS232 port |
| IR remote control(customzable), LAN contril, IOS, Android APP control( optional) |
| System control software |
Special control software |
| Power Supply |
Redundant power supply 110-220VAC, 50/60Hz |
| Consumption |
12W/channel |
| Working temperature |
-20°C——60°C |
| Working Humidity |
5-95% |
| Case specification |
2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis |
| Serial Control Interface |
RS-232,9-pin female, Type-D |
| Baud Rate |
115200 |
| Pin configuration |
2=TX,3=RX,5=GND |
| Ethernet control interface |
RJ-45 female, TCP/IP |
| Ethernet control speed |
Auto 10M or 100M,Full-duplex or half-duplex |
| Working time |
365x7x24hrs |
Hareware video wall controller U Chassis Specs
| Chassis U size |
Controller Dims(mm)
L*W*H |
Pack dims(mm)
L*W*H |
N.W(kg) |
G.W(kg) |
Max input Nos. |
Max output Nos. |
Max Power Consumption(Watts) |
| 2U |
406×440×102 |
590×530×190 |
11.25 |
12.25 |
8 |
8 |
200 |
| 3.5U |
450x440x170 |
620x620x270 |
18.25 |
19.25 |
16 |
16 |
320 |
| 7U |
442×402×320 |
590×530×460 |
29.5 |
31.50 |
32 |
32 |
400 |
| 12.5U |
446×440×553 |
625×580×725 |
37.85 |
39.85 |
71 |
68 |
750 |
| 23U |
442×43×1022 |
615×570×1180 |
80.46 |
82.46 |
143 |
140 |
1300 |
