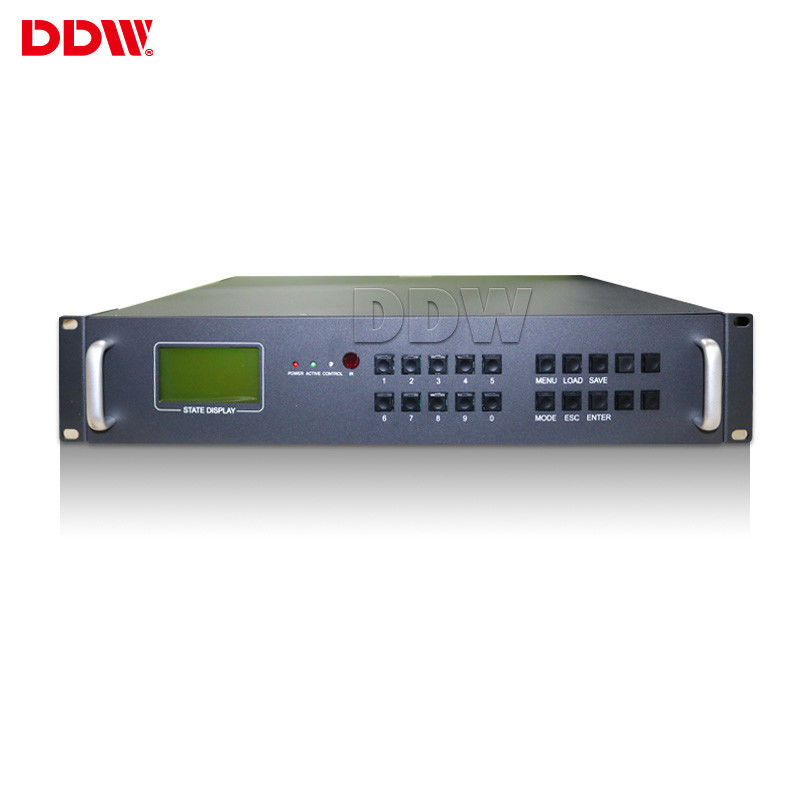

RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software

RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software

    • RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software
    • RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software
    • RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software
  • RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VPH0606

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: 4k Video Wall Controller Output Resolution: 1920x1080
    Max PIP Per Screen: 1,4,16,customization Color Quality: 32bit
    Maximum Input Numbers: 6 Maximum Output Numbers: 6
    Control Method: RS232,IP Application: Railway, Military
    High Light:

    multi display processor

    ,

    video display wall controller

    RS232 IP control Video Wall Processor with control software 12W/channel



    LCD video processor key features:

    •  With special virtual display technology, full channel real HD 1080P signal processing;
    •  Signal Preview function available;
    •  Supporting PC, Android APK, iOS APP control software;
    •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
    •  Scaling and positioning, size is scalable and position adjustable;
    •  With background logo display function. It can be customized;
    •  Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

    Simplified installation & disassembly

    •  Flexible modular design, Input and output card board;
    •  Support input of a variety of interfaces and signal source;
    •  Matching features, pre-monitoring;
    •  Echo function, input and output characters display with superimposed;



    DDW Video Wall Processor Technical Specifications

    Model series With CBD Function No CBD
    Function description

    4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different

    sigal at the same time to the system,require screen built in daisy chain board

    ~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
    VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
    HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
    YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
    SDI(customizable) BNC Port ~
    AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
    Input resolution up to 4K,commonly used resolutions
    Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
    HDMI, DVI, 4K-DVI HDMI, DVI output ~
    3G SDI(customzable) BNC Port loop out ~
    AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
    Output resolution up to 4K,commonly used resolutions
    Control Standard RS232 port
    IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs



    Hareware video wall controller U Chassis Specs

    Chassis U size Controller Dims(mm)
    L*W*H
    Pack dims(mm)
    L*W*H
    N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
    2U 406×440×102 590×530×190 11.25 12.25 8 8 200
    3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
    7U 442×402×320 590×530×460 29.5 31.50 32 32 400
    12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
    23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300

    RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software 0RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software 1RS232 IP Video Display Wall Controller , HDMI Video Wall Controller With Software 2
