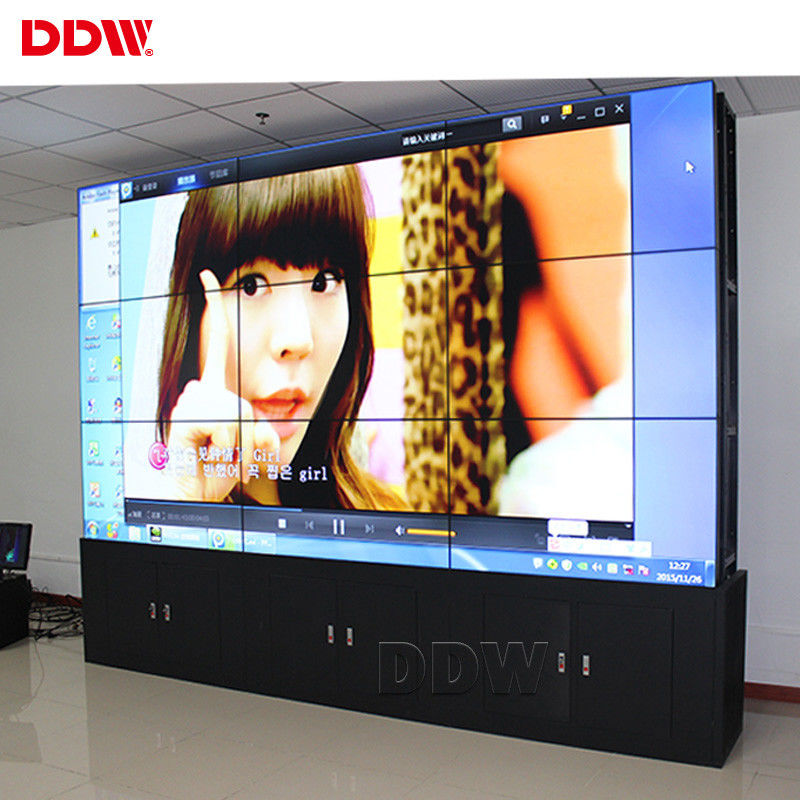

Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans

Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans

    • Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans
    • Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans
    • Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans
  • Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550HN12

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Surface: Anti-glare Product Name: Interactive Video Wall
    Resolution: 1920*1080 Input Voltage: AC 220v-250v
    MTBF: > 100,000h Cooling: Low Noise Fans
    Working Temperature: 0°C~50°C Display Colors: 8Bit,16.7M

    55" Commercial Multi Interactive Video Wall LG Wall Mount LCD Display LW550HN12





    Interactive Video Wall​ Key features:

    1. Support a variety of signal ports.

    2. Built-in splicing module, Support splice function

    3. Support creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Unique DNX motion supplement image processing technology,

    6. Dynamic image without motion trail

    7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

    8. Input by remote control with wire, mobile receiver head.



    55 " Interactive Video Wall main parameters

    1. Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD

    2. 700 nits brightness,MEGA DCR contrast.FHD video wall unit--- High brightness,high contrast,High gamut.

    3. FHD physical resolution 1920x1080

    4. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.

    5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6. Flexible structure design ---easy installation ,extensible,arbitrary combination

    . Stable performance,suitable working for a long time



    Specifications

    Model No: DDW-LW550HN12
    LCD Technology Samsung a-Si TFT-LCD
    Active Screen Diagonal 55"
    Pixel Pitch(WxH)

    0.63x0.63 mm

    Active Display Area(WxH)

    1209.6 × 680.4 mm

    Panel Dimension(WxHxD)

    1213.5x684.3x67.7mm

    Total Bezel Width 3.5mm | 0.208”
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backlight System LED
    Luminance(nits) 700cd/sqm
    Contrast 5000:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing



    Interactive Video Wall​ Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)
