Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center

Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center

    • Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center
    • Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center
    • Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center
    • Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center
  • Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW460HN11

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: L/C , L/C , T/T
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Interactive Video Wall Daisy Chain: RJ45 Loop
    Control Method: RS232 Control Total Physical Bezel: 3.5 Mm
    Resolution: 1920*1080 Backlit Type: LED
    Panel Width: 1021.98mm Panel Height: 576.57mm
    High Light:

    interactive video display

    ,

    interactive touch screen video wall

    46 inch Interactive Video Wall ultra narrow bezel for fashion store advertising




    Application

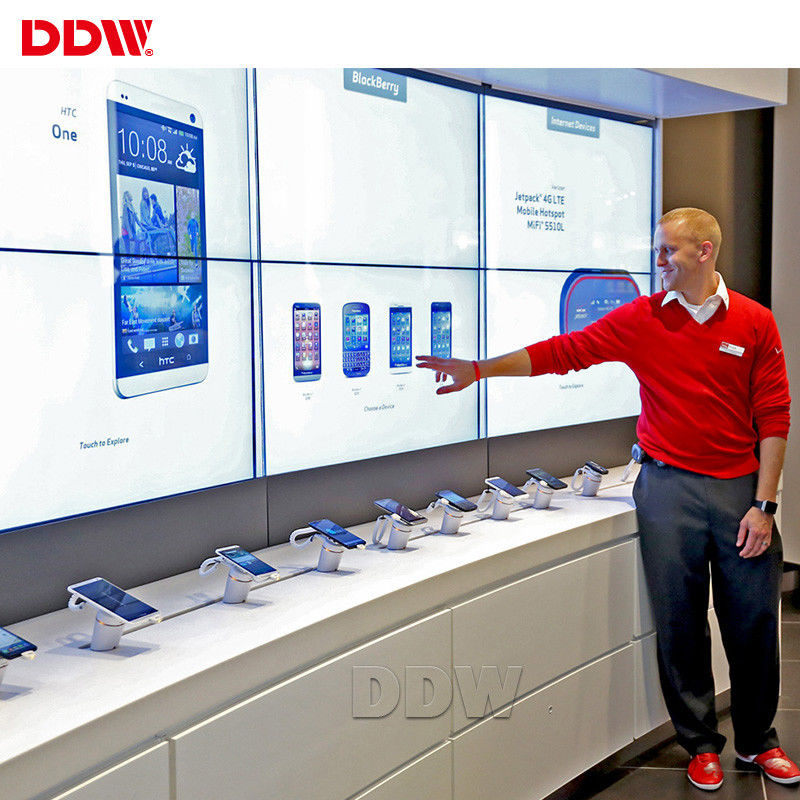

    Interactive Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



    LCD video wall basic informations:

    •  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
    •  Adapting modular components, making maintenance operations and parts replacement very easily;
    •  The installation method: floor standing cabinets;
    •  Dot Pitch: 0.5302mm(H)*0.5302mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
    •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
    •  7x24x365 keep working;

    Functions:

    •  Supporting 225 units (15×15) multi-matrix;
    •  Single screen display. Each unit can display the picture independently;
    •  Image overlay. Superimposed on screen another picture;
    •  Easy to choose full screen or multi-screen display by control video wall controller.



    Specifications

    LCD Technology Samsung a-Si TFT-LCD
    Active Screen Diagonal 46"
    Panel Dimension(WxHxD)

    1021.98x576.57x72.1mm

    Total Bezel Width 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backlight System LED
    Luminance(nits) 500cd/sqm
    Contrast 5000:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing



    LCD Video Wall Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)
