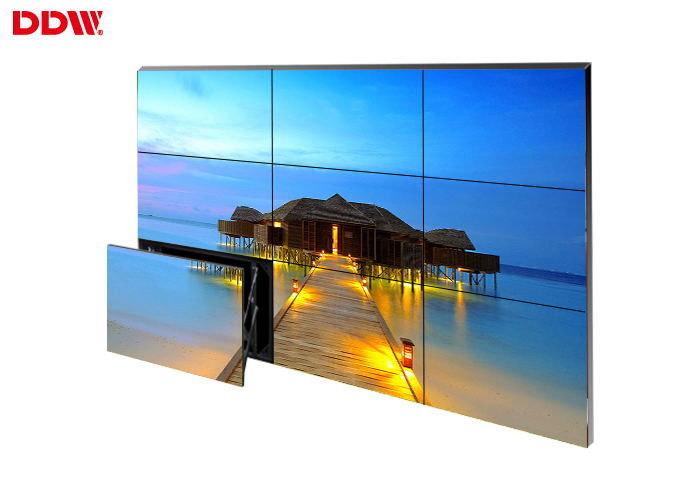

Lightweight Commercial Video Wall Command Center 1920x1080 Easy Installation

Lightweight Commercial Video Wall Command Center 1920x1080 Easy Installation

Lightweight Commercial Video Wall Command Center 1920x1080 Easy Installation

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN11

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Application: Video Wall Command Center Bezel Width: 3.5mm
Surface: Anti-glare Product Name: Commercial Video Wall
Feature: Lightweight Color: 8Bit , 16M
Brightness: 500nits Aspect Ratio: 16:9

Lightweight Commercial Video Wall Command Center 1920x1080 Easy Installation



Commercial Video Wall parameters

  1.  FHD physical resolution 1920x1080
  2.  Only 3.5mm ultra narrow bezel, high quality ,Practical ,good vision effect.
  3.  Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  4.  HD video wall unit--- High brightness,high contrast,High gamut .
  5.  Flexible structure design --- easy installation ,extensible,arbitrary combination
  6.  Stable performance,suitable working for a long time

Commercial Video Wall Key features:



  1.  Support Creating one window PIP across the screen, roaming service, scaling,PIP
  2.  Support matrix joint control.
  3.  Unique DNX motion supplement image processing technology,
  4.  Dynamic image without motion trail
  5.  Splicing image processing RS-232 RJ45 loop-circuit input/output.
  6.  Input by remote control with wire, mobile receiver head.



Commercial Video Wall Specifications:



Model No: DDW-LW460HN11 Lightweight Commercial Video Wall Command Center 1920x1080 Easy Installation
LCD Technology SAMSUNG LCD
Active Screen Diagonal 46"
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.5302x0.5302

Active Display Area(WxH)

1018.08×572.67 mm

Panel Dimension(WxHxD) 1021.98×576.57x72.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing







Lightweight Commercial Video Wall Command Center 1920x1080 Easy InstallationLightweight Commercial Video Wall Command Center 1920x1080 Easy InstallationLightweight Commercial Video Wall Command Center 1920x1080 Easy Installation
