Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control

Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control

    • Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control
  • Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550DUN-THA3

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Design: Narrow Bezel Width: 1.8 Mm
    Product Name: Frameless Video Wall Backlight: LED
    Type: Lcd Video Wall Display Aspect Ratio: 16:9
    Working Humidity: 0.85 Control: Remote Control
    High Light:

    lcd screen wall

    ,

    seamless lcd video wall

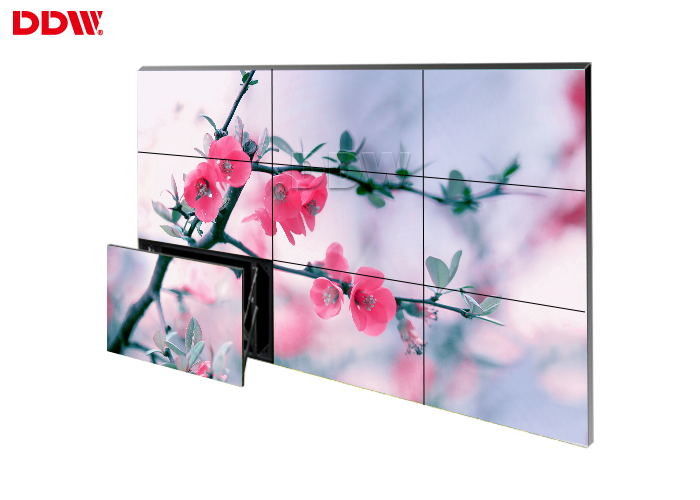

    Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control




    Frameless Video Wall Main features:



    1. Samsung industrial panel, support 24 hours continously playing;
    2. The gaps between panels is 5.3mm;
    3. Full hardware structure, no CPU and operation system;
    4. Easy installation, only fixed them together by metal bracket ;
    5. Easy operation , can operate the system together with the software flexible,we offer free software;
    6. Support RS-232 serial ports remote control;
    7. Support multi signal input include BNC, YPbPr,VGA,HDMI,RS232;
    8. Images are displayed smoothly and naturally without time delay and tailing, and the image quality are quite smoothy.
    9. supporting 10x10 pcs panels splice
    10. Support 1920*1080
    11. Use life is over 50000 hours;



    Frameless Video Wall Specifications:



    Model No: DDW-LW550DUN-THA3 Frameless Video Wall
    LCD Technology LG IPS LCD
    Active Screen Diagonal 55 inch
    Total Bezel Width 1.8 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 700 cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH)

    0.63x0.63 mm

    Active Display Area(WxH)

    1209.6×680.4mm

    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    Frameless Video Wall ​Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control 0Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control 1Narrow Design Frameless Video Wall , Lcd Video Wall Display Remote Control 2
