Name: RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design
Brand: Shenzhen DDW Technology Co., Ltd.
SKU: DDW-LW490DUN-THC1
Availability: InStock

Home Products Commercial Video Wall

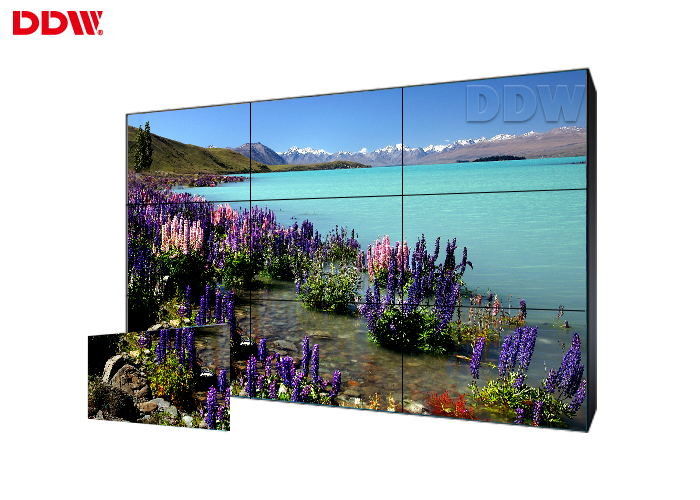

RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design

Product Details:

Place of Origin:	Guangdong , China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 , CE , RoHS , FCC
Model Number:	DDW-LW490DUN-THC1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	First layer carton pack with filling foam , then wood pallet pack
Delivery Time:	3 working days upon payment
Payment Terms:	T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability:	3 , 000pcs per month

Contact Now

Detailed Product Description

Port:	RS232 Port	Product Name:	Commercial Video Wall
Input Voltage:	AC 220v-250v	MTBF:	> 100,000h
Control:	Wireless	Working Temperature:	0°C~50°C
Total Physical Bezel:	3.5mm	Dot Pitch:	0.5593x0.5593mm
Highlight:	lcd screen wall , seamless lcd video wall

RS232 Port Wireless Commercial Video Wall Beautiful Wall Structure Design

Commercial Video Wall Main features:

1. LG / Samsung industrial panel, support 24 hours continously playing;
2. The gaps between panels is 5.3mm;
3. Full hardware structure, no CPU and operation system;
4. Easy installation, only fixed them together by metal bracket ;
5. Easy operation , can operate the system together with the software flexible,we offer

Commercial Video Wall parameters

1. Original DDW commercial grade lcd video wall display panel,16:9 LG TFT-LCD

2. 500 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 3.5 mm ultra narrow bezel, high quality ,Practical ,good vision effect.

5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. FHD video wall unit--- High brightness,high contrast,high gamut .

Commercial Video Wall Specifications

Model No:	DDW-LW490DUN-THC1 Commercial Video Wall
Active Screen Diagonal	49''
Pixel Pitch(WxH)	0.5593x0.5593 mm
Active Display Area(WxH)	1073.8 × 604 mm
Panel Dimension(WxHxD)	1077.6x607.8x55.6 mm
Total Bezel Width	3.5 mm \| 0.208”
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backlight System	LED
Luminance(nits)	500cd/sqm
Contrast	5000:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
MTBF	> 100,000h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing

LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
