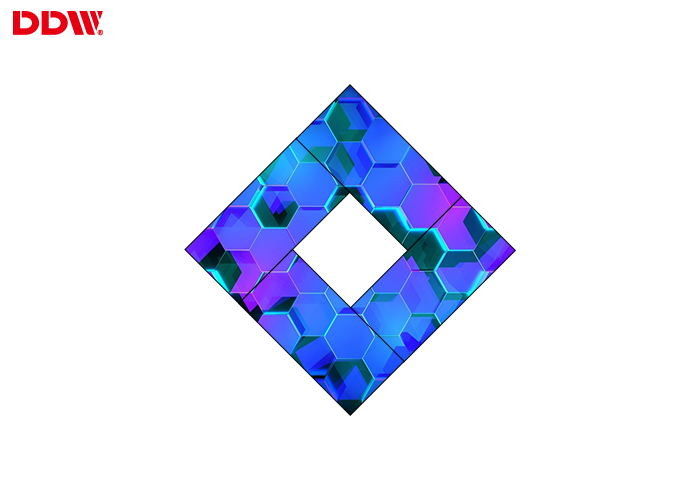

Ultra Thin 49 Inch Irregular Video Wall High Brightness 3x4 Ultra Narrow Bezel

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 , CE , RoHS , FCC
Model Number:	DDW-LW490DUN-TJB1

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	Negotiation
Packaging Details:	Quality carton with full wood box packing
Delivery Time:	3 working days upon payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3 , 000pcs per month

Contact Now

Detailed Product Description

Name:	Irregular Video Wall	Size:	49 Inch
Feature:	Ultra Thin	Viewing Angle:	178°/178°
Contrast Ratio:	4000:1	Brightness:	350-700 Nits
Response Time:	6ms	Input Voltage:	220V
High Light:	mosaic video wall , artistic video wall

Architectural 55 Inch Irregular Video Wall For Home Theater / Exhibition

Irregular Video Wall Application

Exhibition

Company showroom

Digital demo wall

The mall

Ktv

Irregular Video Wall Parameters:

LCD Video Wall Screen (SAMSUNG DID panel)
Specifications
Model No.			DDW--LW490DUN-TJB1
Panel Size			49'' SAMSUNG DID LCD Screen(super narrow bezel 1.8 mm)
Aspect Ratio			16:09
Max Resolution Support			1920x1080
Color			8Bit,16.7M
Brightness (nits)			700cd/m2
Contrast			4000:1
Visual Angle (H/V)			178°
Response Time			<=6ms
Life(hrs)			>60,000(hrs)
Input and output
DVI			1
HDMI			1
D-15 RGB Input(VGA)			1
YUV/YPbPR			1(3xBNC)
S-(YC)			1(2xBNC)
Composite Video Input/(AV)			3(3xBNC)
Composite Video Output			2(2xBNC)
AUDIO INPUT			1
Split Screen			Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply			AC100V~240V
Maximum Power Consumption			250W
Standby Power Consumption			<=3W
Temperature
Working Temperature			0°C~50°C
Working Humidity			20%-80%
Dimension			1075.58x605.8x53.3mm
Video Wall Controller(Built-in each Screen)
Input	CVBS	1*BNC port, support PAL/NTSC all formats
	DVI	1*DVI-I port, support SVGA/XGA/WUXGA
	VGA	1*D15 port, support SVGA/XGA/WXGA
	HDMI	5*BNC ports, support SVGA/XGA/WUXGA
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
	CVBS	support PAL/NTSC all formats
	DVI	1*DVI-I port, support SVGA/XGA/WUXGA
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	ADD Code
Engineering software	LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
Working temperature	0~70 ℃
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	307×283×55(mm)
Weight	About 3.5KG

Factory products 49 inch 1.8mm ultra-narrow bezel floor standing lcd video wall 1080P HDMI DP loop irregular video wall

Facilities:

We group companies own following facilities to accomplete the business:
1) 2500㎡ production department
2) Our own metal factory 3000㎡
3) Our own panel warehouse 1500㎡
All departments R&D Technical, Purchase, Production (Assemble-QC-Packing-Shipping-Aftersales), Domestic & Overseas Sales, Merchandiser and Public Relationship joint corporately & effectively.
