Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW550HN16 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Quality carton with full wood box packing |
Delivery Time: | 3 working days upon payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 3 , 000pcs per month |
Name: | Irregular Video Wall | Feature: | Ultra High Definition |
---|---|---|---|
Application: | Advertisong | Processor: | Hdmi Video Wall Processor |
Contrast Ratio: | 4000:1 | Brightness: | 350-700 Nits |
Connected: | Distribution Box Connected | ||
High Light: | art video wall,artistic video wall |

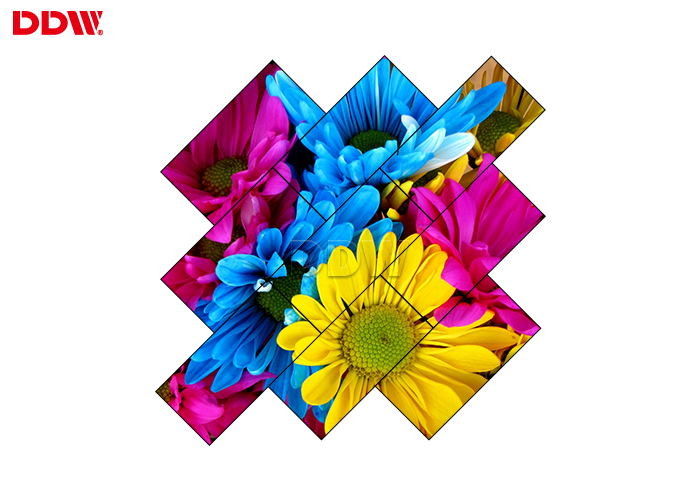

Ultra High Definition Irregular Video Wall With Distribution Box Connected
Irregular Video Wall Description
♦ Excellent super narrow bezel design with just 3.5 mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ HD display 1920x1080
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported (Option)
Irregular Video Wall Parameters:
Name | Ultra High Definition Irregular Video Wall With Distribution Box Connected | ||
Item No. | Components | Descriptions | |
1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
2 | System controller | 1 in 16output HDMI splitter | |
3 | Bracket | POP out bracket for 55" lcd video wall | |
Panel Specifications | |||
LCD Technology | Original Samsung DID LCD | ||
Active Screen Diagonal | 55" | ||
Panel Dimension(WxH) | 1211.6*682.4mm | ||
Total Bezel Width | 1.7mm | ||
Aspect Ratio | 16:9 | ||
Physical Resolution | 1920*1080 | ||
Backlight System | WLED | ||
Luminance(nits) | 500cd/m2 | ||
Contrast | 1500:1 (typ.) | ||
Viewing Angle | H 178°|V 178° | ||
Display Colors | 8Bit,16.7M | ||
Refresh Rate | 60Hz | ||
Response Time | <=6ms | ||
Life(hrs) | >60,000(hrs) | ||
MTBF | > 100,000 h | ||
Surface | Anti-glare | ||
Standby Power Consumption | <3W | ||
Maximum Power Consumption | <=260W | ||
Power Supply | AC100~240V 50/60 HZ | ||
Cooling | Low noise fans | ||
Working Time Capacity | 7x24x365hours | ||
Working Temperature | 0℃~50℃ | ||
Working Humidity | 0.85 | ||
Storage Temperature | -20-60°C | -4-140°F | ||
Storage Humidity | 85% non-condensing | ||
Net Weight | 26kg/unit | ||
1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
DVI-I DUAL LINK | 1 | ||
HDMI input 2K | 1 | ||
VGA input | 1 | ||
RS232 IN | 1 | ||
RS232 OUT | 2 | ||
IR IN | 1 | ||
AC IN | AC100-240V | ||
Color System Support | PAL/NTSC/SECAM | ||
Control Type | IR Remote &Software Control | ||
Menu Language | English | ||
Vertical/Horizontal Display | Support |
Packaging & Delivery
Selling Units:Single item
Single package size: 110X20X80 cm
Single gross weight:32.0 kg
