Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW550HN16 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Quality carton with full wood box packing |
Delivery Time: | 3 working days upon payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 3 , 000pcs per month |
Name: | Irregular Video Wall | Panel: | Samsung Original Display Panel |
---|---|---|---|
Viewing Angle: | 178°/178° | Contrast Ratio: | 4000:1 |
Resolution: | Full HD 1080P | Size: | 55" |
High Light: | mosaic video wall,artistic video wall |

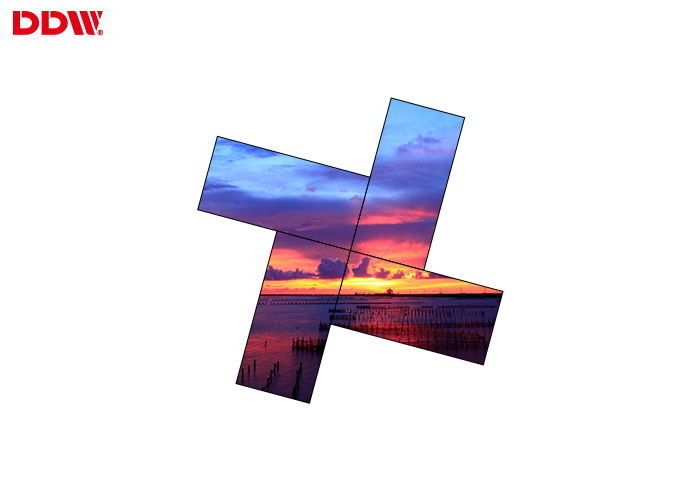

Full HD 1080P Irregular Video Wall 55" Samsung Original Display Panel
Irregular Video Wall Description
♦ Ultra narrow design
♦ Built-in 3D nose reduction ,Its operating noise level is under 25 dB, which is quieter than a typical recording studio (30 dB)
♦ LED backlight technology provides high uniformity in brightness to ensure a clear picture
♦ Easy Management with LAN ( DP)Daisy Chain
♦ 4K input supported
♦ Multi touch screen supported
Irregular Video Wall Parameters:
Name | Full HD 1080P Irregular Video Wall 55" Samsung Original Display Panel | ||
Item No. | Components | Descriptions | |
1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
2 | System controller | 1 in 16output HDMI splitter | |
3 | Bracket | POP out bracket for 55" lcd video wall | |
4 | Standard Accessories | IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector | |
5 | Packing | 4/5 screens in 1 wooden case | |
Panel Specifications | |||
Backlight System | WLED | ||
Luminance(nits) | 500cd/m2 | ||
Contrast | 1500:1 (typ.) | ||
Viewing Angle | H 178°|V 178° | ||
Display Colors | 8Bit,16.7M | ||
Refresh Rate | 60Hz | ||
Response Time | <=6ms | ||
Life(hrs) | >60,000(hrs) | ||
MTBF | > 100,000 h | ||
Surface | Anti-glare | ||
Standby Power Consumption | <3W | ||
Maximum Power Consumption | <=260W | ||
Power Supply | AC100~240V 50/60 HZ | ||
Cooling | Low noise fans | ||
Working Time Capacity | 7x24x365hours | ||
Working Temperature | 0℃~50℃ | ||
Working Humidity | 0.85 | ||
Storage Temperature | -20-60°C | -4-140°F | ||
Storage Humidity | 85% non-condensing | ||
Net Weight | 26kg/unit | ||
1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
DVI-I DUAL LINK | 1 | ||
HDMI input 2K | 1 | ||
VGA input | 1 | ||
RS232 IN | 1 | ||
RS232 OUT | 2 | ||
IR IN | 1 | ||
AC IN | AC100-240V | ||
Color System Support | PAL/NTSC/SECAM | ||
Control Type | IR Remote &Software Control | ||
Menu Language | English | ||
Vertical/Horizontal Display | Support |
