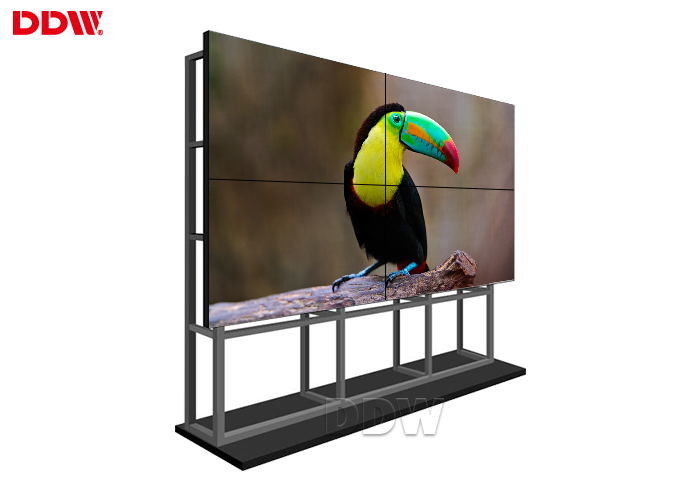

Digital 4k Video Wall Display Systems / Frameless Lcd Video Screen

Digital 4k Video Wall Display Systems / Frameless Lcd Video Screen

Digital 4k Video Wall Display Systems / Frameless Lcd Video Screen

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-THB5

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Video Wall Display Systems Response Time: <=6ms
Display Colors: 8Bit,16.7M Power Supply: AC100~240V 50/60 HZ
Type: Digital Aspect Ratio: 16:9
Storage Humidity: 85% Non-condensing Advantage: Frameless

Digital 4k Video Wall Display Systems / Frameless Lcd Video Screen



Video Wall Display Systems ​Introduction



Professional-grade, high-resolution DDW LCD Video Wall are the perfect solution for tiled video wall applications in small to medium-sized control rooms.

The Super narrow bezel series comprises 46", 47'' and 55" LCD displays with LED backlights, combining high brightness and a wide color gamut with an extremely narrow bezel for excellent tiled visual performance.



Video Wall Display Systems Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail



Video Wall Display Systems main parameters

  •  Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD
  •  Only 1.8 mm ultra narrow bezel, high quality ,practical ,good vision effect.
  •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  FHD video wall unit--- High brightness,high contrast,high gamut .
  •  Flexible structure design ---easy installation ,extensible,arbitrary combination
  •  Stable performance,suitable working for a long time

Video Wall Display Systems​ Specifications



Model No:

DDW-LW550DUN-THB5 Video Wall Display Systems

LCD Technology LG LCD
Active Screen Diagonal 55"
Pixel Pitch(WxH) 0.63x0.63mm
Active Display Area(WxH) 1209.6x680.4mm
Panel Dimension(WxHxD)

1211.4x682.2x53.3mm

Total Bezel Width 1.8 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 500 cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



LCD Video Wall Display​ Board Specification

Support PC color 24bit
signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
DVI color 24bit
HDMI Line synchronization range 30-80KHZ
DP Field synchronization range 50-75HZ
Interface input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



Digital 4k Video Wall Display Systems / Frameless Lcd Video Screen



Digital 4k Video Wall Display Systems / Frameless Lcd Video ScreenDigital 4k Video Wall Display Systems / Frameless Lcd Video Screen
