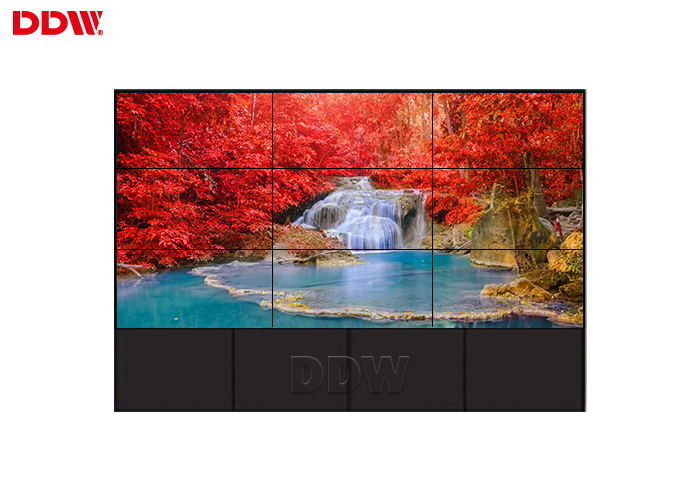

Horizontal LCD Video Wall Display With Original LG , Samsung Panel

Horizontal LCD Video Wall Display With Original LG , Samsung Panel

Horizontal LCD Video Wall Display With Original LG , Samsung Panel

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-TKB1

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: LCD Video Wall Display Viewing Angle: 178x178
Type: Horizontal Brightness: 500 Nits
Backlight: LED Resolution: 1920*1080
Panel: Original LG , Samsung Contrast: MEGA DCR

Horizontal LCD Video Wall Display With Original LG , Samsung Panel



LCD Video Wall Display Application



Business Organizations supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course



LCD Video Wall Display parameters



1. Original DDW commercial grade lcd video wall display panel

2. 500 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 3.5mm ultra narrow bezel, high quality ,practical ,good vision effect.

5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. Stable performance,suitable working for a long time



LCD Video Wall Display Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Input by remote control with wire, mobile receiver head.



LCD Video Wall Display Specifications:



Model No: DDW-LW550DUN-TKB1 LCD Video Wall Display
Active Screen Diagonal 55''
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.63x0.63 mm

Active Display Area(WxH)

1209.6 × 680.4 mm

Panel Dimension(WxHxD)
1213.4x684.2x38.9mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



LCD Video Wall Display Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)





Horizontal LCD Video Wall Display With Original LG , Samsung PanelHorizontal LCD Video Wall Display With Original LG , Samsung PanelHorizontal LCD Video Wall Display With Original LG , Samsung Panel
