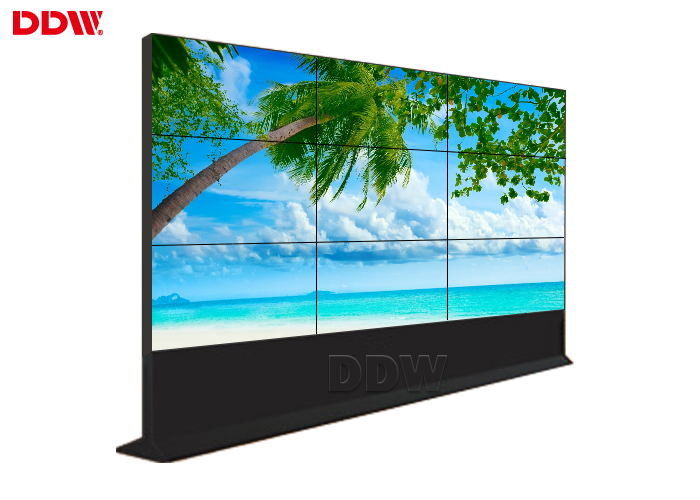

Large Outdoor Lcd Video Wall Multi Screen , DDW Touch Screen Video Wall

Large Outdoor Lcd Video Wall Multi Screen , DDW Touch Screen Video Wall

Large Outdoor Lcd Video Wall Multi Screen , DDW Touch Screen Video Wall

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN14

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Outdoor Lcd Video Wall Brightness: 700 Nits
Panel Brand: Samsung Other Name: Touch Screen Video Wall
Refresh Rate: 60Hz White Point: 10,000 K
Working Temperature: 0°C~50°C Contrast: MEGA DCR

Large Outdoor Lcd Video Wall Multi Screen , DDW Touch Screen Video Wall



Outdoor Lcd Video Wall Introduction



The DDW LCD Video Wall Display is an effective way to convey content and full HD videos to customers. The narrow bezel allows seamless image and flexibility to any size or shape. Designed for easy maintenance and operation, video wall is able to deliver superior visual performance in any environment.



Outdoor Lcd Video Wall Key features:

  •  Built-in splicing module, Support splice function
  •  Support creating one window PIP across the screen, roaming service, scaling,PIP
  •  Support matrix joint control.
  •  Unique DNX motion supplement image processing technology,
  •  Dynamic image without motion trail
  •  Splicing image processing RS-232 RJ45 loop-circuit input/output.
  •  Input by remote control with wire, mobile receiver head.



Outdoor Lcd Video Wall parameters



1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD

2. 700nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 1.7mm ultra narrow bezel, high quality ,practical ,good vision effect.

5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. HD video wall unit--- High brightness,high contrast,high gamut .



Outdoor Lcd Video Wall Application



Advertising Commercial Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



Outdoor Lcd Video Wall Specifications:



Model No: DDW-LW550HN14 Outdoor Lcd Video Wall
Active Screen Diagonal 55"
Bezel Width Total: 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.63x0.63 mm

Active Display Area(WxH)

1209.6 × 680.4 mm

Panel Dimension(WxHxD)

1211.54x682.34x65.1mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Outdoor Lcd Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



Large Outdoor Lcd Video Wall Multi Screen , DDW Touch Screen Video WallLarge Outdoor Lcd Video Wall Multi Screen , DDW Touch Screen Video Wall
