| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Irregular Video Wall | Featuure: | Multi Display |
|---|---|---|---|
| Viewing Angle: | 178° | Contrast Ratio: | 4000:1 |
| Resolution: | HD 1080P | Panel: | Original Industrial DID LCD Panel |
| High Light: | mosaic video wall,artistic video wall |
||

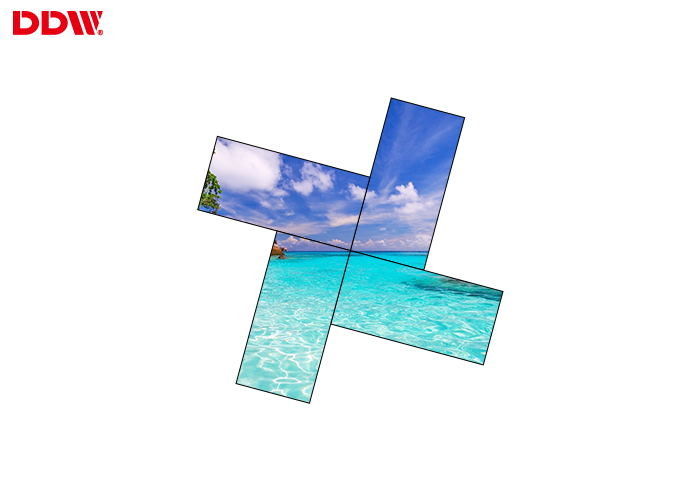

Multi Display Irregular Video Wall With Original Industrial DID LCD Panel
Irregular Video Wall KEY FEATURE
original industrial DID LCD panel
Straight-down LED backlight system.
16.7M COLOR
178° wide vision angle.
Response time: ≤ 6ms.
Easy-going MD (modular design)
Multi-layer menu display.
7*24 uninterrupted working.
Ample built-in signal interface
Irregular Video Wall Parameters:
| Name | Full HD 1080P Irregular Video Wall Indoor / Semi Outdoor 350-700 Nits | ||
| Item No. | Components | Descriptions | |
| 1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
| 2 | System controller | 1 in 16output HDMI splitter | |
| 3 | Bracket | POP out bracket for 55" lcd video wall | |
| 4 | Standard Accessories | IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector | |
| 5 | Packing | 4/5 screens in 1 wooden case | |
| Panel Specifications | |||
| LCD Technology | Original Samsung DID LCD | ||
| Active Screen Diagonal | 55" | ||
| Panel Dimension(WxH) | 1211.6*682.4mm | ||
| Total Bezel Width | 1.7mm | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920*1080 | ||
| Backlight System | WLED | ||
| Luminance(nits) | 500cd/m2 | ||
| Contrast | 1500:1 (typ.) | ||
| Viewing Angle | H 178°|V 178° | ||
| Display Colors | 8Bit,16.7M | ||
| Refresh Rate | 60Hz | ||
| Response Time | <=6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| MTBF | > 100,000 h | ||
| Surface | Anti-glare | ||
| Standby Power Consumption | <3W | ||
| Maximum Power Consumption | <=260W | ||
| Power Supply | AC100~240V 50/60 HZ | ||
| Cooling | Low noise fans | ||
| Working Time Capacity | 7x24x365hours | ||
| Working Temperature | 0℃~50℃ | ||
| Working Humidity | 0.85 | ||
| Storage Temperature | -20-60°C | -4-140°F | ||
| Storage Humidity | 85% non-condensing | ||
| Net Weight | 26kg/unit | ||
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
| DVI-I DUAL LINK | 1 | ||
| HDMI input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
About Us
Shenzhen DDW Technology Co.,Ltd started in 2009, a leading manufacturer and developer of commercial LCD displays withown facility 7000sqm in China. We focus on customized Indoor outdoor digital totems, touch screen kiosk, Stretched Bar LCD,LCD video wall system,video wall controller and more LCD display solutions. With high quality standard, meticulous workmanship, strict quality control,professional service, DDW aims to provide our customers, distributors and suppliers with win-win cooperation.
