| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Irregular Video Wall | Type: | TFT |
|---|---|---|---|
| Feature: | Ultra Thin | Viewing Angle: | 178°/178° |
| Contrast Ratio: | 4000:1 | Color: | 16.7M Color |
| Response Time: | 6ms | Fan: | Quiet Cooling Fan |
| High Light: | mosaic video wall,artistic video wall |
||

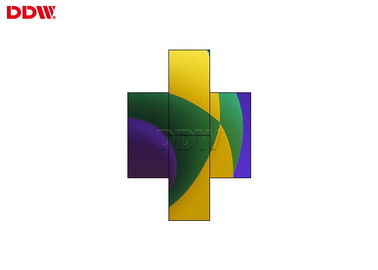

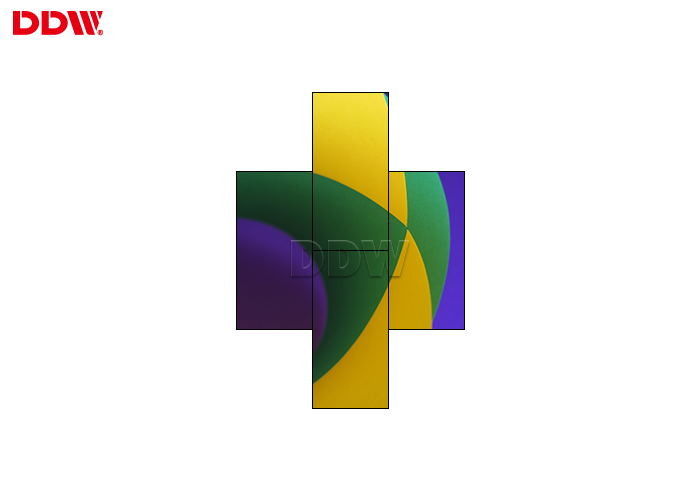

Ultra Thin Splicing Irregular Video Wall 16.7M Color Quiet Cooling Fan
Irregular Video Wall Features:
* Use IPS hard screen panel, 16.7M color
* Ultra thin and seamless, perfect image and video effect.
* Support 256 tiled display unit, support the irregular video wall display unit
* Wide visual angle 178H/178V
* 3D digital noise reduction processing
* Support single screen splicing
* Support image roaming combination
* Support image stretching irregular video wall
* Single screen power consumption of 1 levels of energy consumption, low carbon imprint, environmentally friendly, normal service life of up to 60000 hours
* Ultra quiet cooling fan design, intelligent temperature control circuit, intelligent protection system
* Support automatic back light source adjustment technology (option)
Irregular Video Wall Parameters:
| Name | Ultra Thin Splicing Irregular Video Wall 16.7M Color Quiet Cooling Fan | ||
| Item No. | Components | Descriptions | |
| 1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
| 2 | System controller | 1 in 16output HDMI splitter | |
| 3 | Bracket | POP out bracket for 55" lcd video wall | |
| 4 | Standard Accessories | IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector | |
| 5 | Packing | 4/5 screens in 1 wooden case | |
| Panel Specifications | |||
| LCD Technology | Original Samsung DID LCD | ||
| Active Screen Diagonal | 55" | ||
| Panel Dimension(WxH) | 1211.6*682.4mm | ||
| Total Bezel Width | 1.7mm | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920*1080 | ||
| Backlight System | WLED | ||
| Luminance(nits) | 500cd/m2 | ||
| Contrast | 1500:1 (typ.) | ||
| Viewing Angle | H 178°|V 178° | ||
| Display Colors | 8Bit,16.7M | ||
| Refresh Rate | 60Hz | ||
| Response Time | <=6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| MTBF | > 100,000 h | ||
| Surface | Anti-glare | ||
| Standby Power Consumption | <3W | ||
| Maximum Power Consumption | <=260W | ||
| Power Supply | AC100~240V 50/60 HZ | ||
| Cooling | Low noise fans | ||
| Working Time Capacity | 7x24x365hours | ||
| Working Temperature | 0℃~50℃ | ||
| Working Humidity | 0.85 | ||
| Storage Temperature | -20-60°C | -4-140°F | ||
| Storage Humidity | 85% non-condensing | ||
| Net Weight | 26kg/unit | ||
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
Packaging & Delivery
Selling Units:Single item
Single package size: 110X20X80 cm
Single gross weight:32.0 kg
Package Type:Quality carton with full wood box packing
Lead Time :
| Quantity(Piece) | 1 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 3 | 5 | To be negotiated |
