HDMI Video Wall Matrix Controller / DVI 9 Display Video Wall Processor

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 ,CE , RoHS , FCC , 3C
Model Number:	DDW-VPH3636

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	Negotiable
Packaging Details:	Double layer carton pack
Delivery Time:	3working days upon payment
Payment Terms:	T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Product Name:	Video Wall Matrix Controller	Other Name:	9 Display Video Wall Processor
Max PIP Per Screen:	1,4,16,customization	Maximum Input Numbers:	36
Maximum Output Numbers:	36	Input Output Signal Sources:	HDMI,DVI.....
Control Method:	RS232,LAN	Baud Rate:	115200
High Light:	vga video wall processor , multi display controller

HDMI Video Wall Matrix Controller / DVI 9 Display Video Wall Processor

Video Wall Matrix Controller key features:

Signal Preview function available;
Supporting PC, Android APK, iOS APP control software;
Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
Scaling and positioning, size is scalable and position adjustable;
With background logo display function. It can be customized;

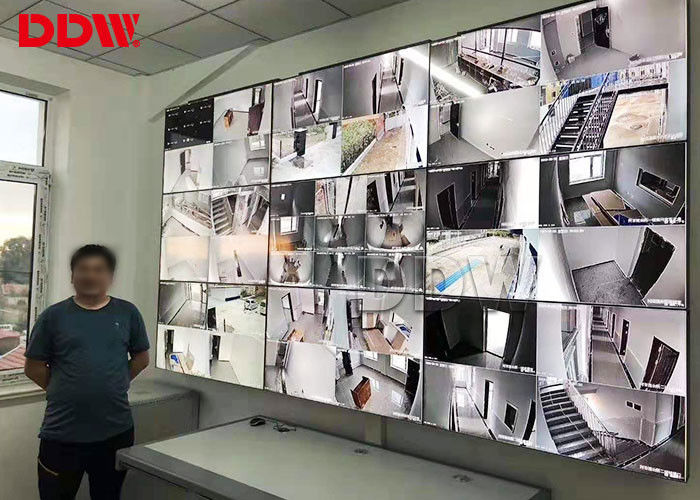

Video Wall Matrix Controller Applications:

company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

Video Wall Matrix Controller Technical Specifications

Model series	With CBD	Function	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board	~	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	CVBS	Support PAL/NTSC format, multiple BNC ports	~
	VGA/RGBHV	Multi-channel VGA DB-15 ports, support VGA full-format input	~
	HDMI, DVI, 4K-DVI, IP	Support 4K(3840x2160) input, each IP decode 4 channels	~
	YPbPr, YCbCr(customizable)	The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV	~
	SDI(customizable)	BNC Port	~
	AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized;	~	~
Input resolution	up to 4K,commonly used resolutions
Output signal format	VGA, RGBHV	signal channel XGA(1024x768@60Hz)/DB-15 port	~
	HDMI, DVI, 4K-DVI	HDMI, DVI output	~
	3G SDI(customzable)	BNC Port loop out	~
	AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized;	~	~
Output resolution	up to 4K,commonly used resolutions
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365x7x24hrs

Hareware video wall controller U Chassis Specs

Chassis U size	Controller Dims(mm) LWH	Pack dims(mm) LWH	N.W(kg)	G.W(kg)	Max input Nos.	Max output Nos.	Max Power Consumption(Watts)
2U	406×440×102	590×530×190	11.25	12.25	8	8	200
3.5U	450x440x170	620x620x270	18.25	19.25	16	16	320
7U	442×402×320	590×530×460	29.5	31.50	32	32	400
12.5U	446×440×553	625×580×725	37.85	39.85	71	68	750
23U	442×43×1022	615×570×1180	80.46	82.46	143	140	1300
