Modular Design Hdmi PC Video Wall Controller With Low Consumption 12W

Modular Design Hdmi PC Video Wall Controller With Low Consumption 12W

  • Modular Design Hdmi PC Video Wall Controller With Low Consumption 12W
Modular Design Hdmi PC Video Wall Controller With Low Consumption 12W
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH1616
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Hdmi Video Wall Controller Design: Modular Design
Roam,zoom,PIP: Support Max PIP Per Screen: Customization
Videowall Controller Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA
Control Method: RS232,IP Consumption: 12W/channel
Highlight:

multi screen controller

,

vga video wall processor

Modular Design Hdmi PC Video Wall Controller With Low Consumption 12W

Hdmi Video Wall Controller features:

  •  Signal Preview function available;
  •  Supporting PC, Android APK, iOS APP control software;
  •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
  •  Scaling and positioning, size is scalable and position adjustable;
  •  With background logo display function. It can be customized;

Simplified installation & disassembly

  •  Support input of a variety of interfaces and signal source;
  •  Matching features, pre-monitoring;
  •  Echo function, input and output characters display with superimposed;

Hdmi Video Wall Controller Specifications



Model series With CBD Function No CBD
Function description

4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different

sigal at the same time to the system,require screen built in daisy chain board

~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input resolution up to 4K,commonly used resolutions
Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
HDMI, DVI, 4K-DVI HDMI, DVI output ~
3G SDI(customzable) BNC Port loop out ~
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
Output resolution up to 4K,commonly used resolutions
Control Standard RS232 port
IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs



Hareware video wall controller U Chassis Specs

Chassis U size Controller Dims(mm)
L*W*H
Pack dims(mm)
L*W*H
N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
7U 442×402×320 590×530×460 29.5 31.50 32 32 400
12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300

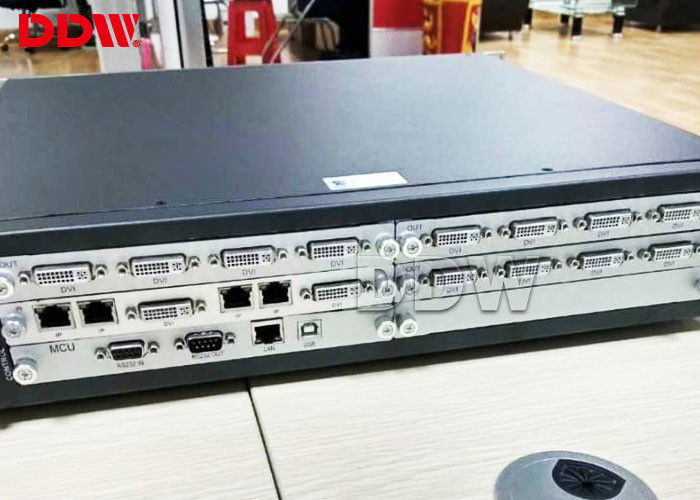

 Modular Design Hdmi PC Video Wall Controller With Low Consumption 12W 0Modular Design Hdmi PC Video Wall Controller With Low Consumption 12W 1
