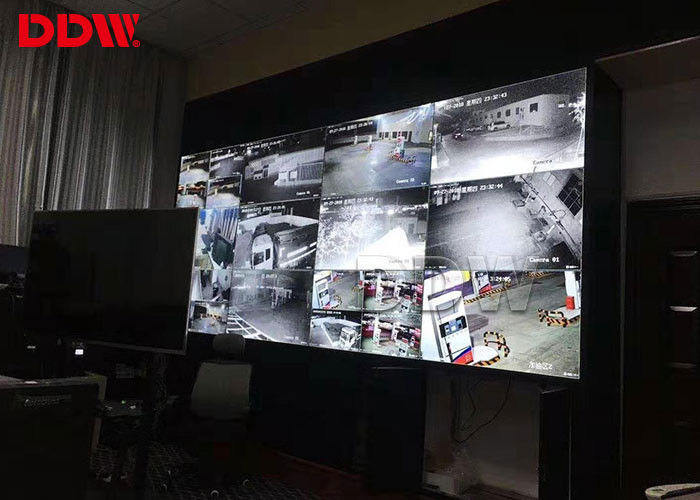

Lightweight Standalone PC Video Wall Controller 4x4 For CCTV Control Room

Minimum Order Quantity:	negotiation
Price:	Negotiable
Packaging Details:	Double layer carton pack
Delivery Time:	3working days upon payment
Payment Terms:	T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Product Name:	PC Video Wall Controller	Feature:	Lightweight
Application:	CCTV Control Room	Input/output:	48X48
Input/Output Resolution:	1920*1080	Input Output Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP
Control Method:	RS232,LAN	Working Humidity:	5-95%
High Light:	vga video wall processor , multi display controller

Lightweight Standalone PC Video Wall Controller 4x4 For CCTV Control Room

PC Video Wall Controller features:

Supporting PC, Android APK, iOS APP control software;
Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
Scaling and positioning, size is scalable and position adjustable;
With background logo display function. It can be customized;
Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

Multi – group video wall management:

It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
Setting different resolutions, adjust colors and other parameters.

PC Video Wall Controller Technical Specifications

Model series	With CBD	Function	No CBD
Input signal(optional)	CVBS	Support PAL/NTSC format, multiple BNC ports	~
	VGA/RGBHV	Multi-channel VGA DB-15 ports, support VGA full-format input	~
	HDMI, DVI, 4K-DVI, IP	Support 4K(3840x2160) input, each IP decode 4 channels	~
	YPbPr, YCbCr(customizable)	The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV	~
	SDI(customizable)	BNC Port	~
	AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized;	~	~
Input resolution	up to 4K,commonly used resolutions
Output signal format	VGA, RGBHV	signal channel XGA(1024x768@60Hz)/DB-15 port	~
	HDMI, DVI, 4K-DVI	HDMI, DVI output	~
	3G SDI(customzable)	BNC Port loop out	~
	AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized;	~	~
Output resolution	up to 4K,commonly used resolutions
Control	Standard RS232 port
	IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365x7x24hrs

Hareware video wall controller U Chassis Specs
