Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | DDW |
Certification: | ISO9001 ,CE , RoHS , FCC , 3C |
Model Number: | DDW-VPH1818 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | Negotiable |
Packaging Details: | Double layer carton pack |
Delivery Time: | 3working days upon payment |
Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
Supply Ability: | 1000pcs/month |
Name: | PC Video Wall Controller | Panel Brand: | Samsung |
---|---|---|---|
Application: | Video Wall Controller For Multi Screen Display | Roam: | Support |
Max PIP Per Screen: | 1,4,16,customization | Maximum Input Numbers: | 18 |
Maximum Output Numbers: | 18 | Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP |
High Light: | multi screen controller,multi display controller |

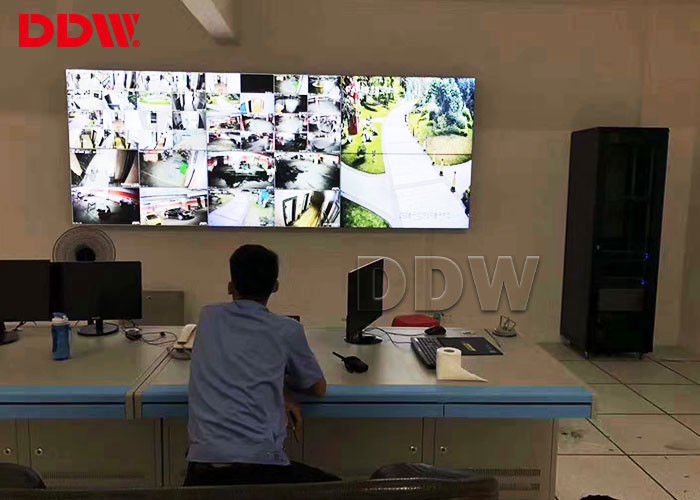

Roam Support PC Video Wall Controller For Multi Screen Display Samsung
Support PC, mobile control software pre-monitoring display:
Integrated control function:
PC Video Wall Controller Technical Specifications
Model series | With CBD | Function | No CBD | ||||
Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input,
support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board |
~ | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays | ||||
Input signal(optional) | CVBS | Support PAL/NTSC format, multiple BNC ports | ~ | ||||
VGA/RGBHV | Multi-channel VGA DB-15 ports, support VGA full-format input | ~ | |||||
HDMI, DVI, 4K-DVI, IP | Support 4K(3840x2160) input, each IP decode 4 channels | ~ | |||||
YPbPr, YCbCr(customizable) | The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV | ~ | |||||
SDI(customizable) | BNC Port | ~ | |||||
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; | ~ | ~ | |||||
Output resolution | up to 4K,commonly used resolutions | ||||||
Control | Standard RS232 port | ||||||
IR remote control(customzable), LAN contril, IOS, Android APP control( optional) | |||||||
System control software | Special control software | ||||||
Power Supply | Redundant power supply 110-220VAC, 50/60Hz | ||||||
Consumption | 12W/channel | ||||||
Working temperature | -20°C——60°C | ||||||
Working Humidity | 5-95% | ||||||
Case specification | 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis | ||||||
Serial Control Interface | RS-232,9-pin female, Type-D | ||||||
Baud Rate | 115200 | ||||||
Pin configuration | 2=TX,3=RX,5=GND | ||||||
Ethernet control interface | RJ-45 female, TCP/IP | ||||||
Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | ||||||
Working time | 365x7x24hrs |
Technical specification of input/output connectors
VGA/RGB input | Input: 15pin HD D-Sub, female | |
Sync mode: HV independent sync | ||
Color Depth: 32bit/pixel | ||
Resolution: 640*480/60HZ—1920*1200/60HZ | ||
Input impedance :75Ω | ||
Video input | Input connector: BNC | |
Detecting: full-format auto detecting | ||
Input impedance :75Ω | ||
VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
Color depth: 32bit/pixel | ||
Output impedance:75Ω | ||
Physical properties of input/output connectors | ||
Signals | Connectors | Type |
Composite VIDEO input | BNC | female |
VGA input | 15 pin HD D-Sub | female |
VGA output | 15 pin HD D-Sub | female |
DVI output | 24+5 or 24+1 standard | female |
AUX RS-232 | 9-pin D-Sub | female |
Main RS-232 | 9-pin D-Sub | female |
