High Resolution CCTV Video Wall For Airport , Station HD 1920x1080P

High Resolution CCTV Video Wall For Airport , Station HD 1920x1080P

High Resolution CCTV Video Wall For Airport , Station HD 1920x1080P

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV46FHM-NV0

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: CCTV Video Wall Type: TFT
Application: Airport , Station Color: 8Bit,16.7M
Resolution: 1920x1080P Input Voltage: 230W
Surface: Anti-glare Working Humidity: 0.85

High Resolution CCTV Video Wall For Airport , Station HD 1920x1080P

CCTV Video Wall Specifications


- 1920x1080 resolution
- LED backlight 500nits brightnes
- 100% New Samsung screen
The world first & best seller lcd video wall screen!!
Most cost-effective lcd video wall solution screen in the world


CCTV Video Wall features:


1, Original DDW Industrial grade Samsung lcd video wall solution screen, 16:9 LG a-Si TFT-LCD
2, 500nits brightness,4000:1 contrast
3, HD physical resolution 1920x1080
4, Only 3.5 mm ultra narrow bezel.high quality ,practical ,good vision effect.
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, HD lcd video wall unit--- High brightness,high contrast,high gamut .

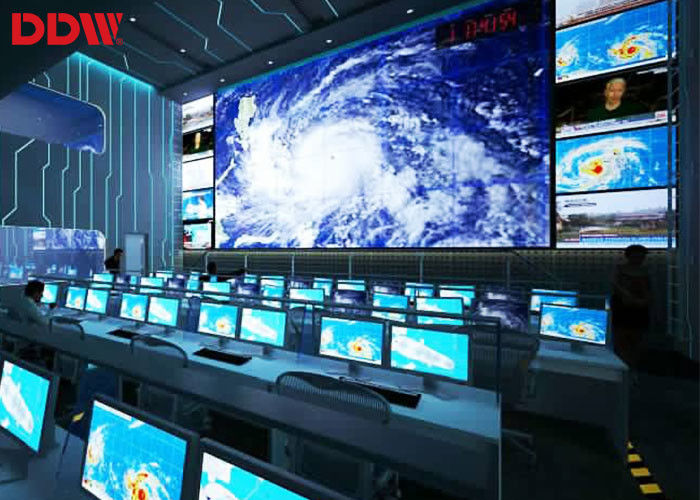

CCTV Video Wall Application


CCTV Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.

CCTV Video Wall Specifications



Active Screen Diagonal 46" 16:9
Bezel Width Total: 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1213.5x684.3x59mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing


CCTV Video Wall​ Board Specifications



Support PC Color 24bit
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)


High Resolution CCTV Video Wall For Airport , Station HD 1920x1080P
