DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall

DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall

    • DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall
    • DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall
    • DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall
    • DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall
    • DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall
  • DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-DV46FHM-NV0

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: L/C , L/C , T/T
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: CCTV Video Wall Panel Size: 46 Inch
    Max Resolution: 1920x1080 Contrast Ratio: 4000:1
    Brightness: 500nits Total Physical Bezel: 3.5 Mm
    Contrast: MEGA DCR Display Colors: 8Bit,16.7M
    High Light:

    conference room video wall

    ,

    control room displays

    46" CCTV Video Wall HD Physical Resolution 1920*1080 DDW-DV46FHM-NV0 3.5mm





    CCTV Video Wall ​Quick Details

    Input Voltage: AC 110-240V

    Brightness: 500nits

    Total bezel width: 3.5 mm

    Resolution: 1920*1080

    Contrast: 4000:1

    Surface: anti-glare

    Video wall monitor power consummtion:250W

    Application condition: indoor and semi-outdoor





    46" high brightness CCTV Video Wall features:

    1, Original DDW Industrial grade LCD video wall panel

    2, LED backlight 500nits high brightness

    3, HD physical resolution 1920*1080

    4, Only 3.5 mm ultra narrow bezel.high quality ,practical ,good vision effect.

    5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6, FHD video wall unit--- High brightness,high contrast,high gamut .

    7, Flexible structure design ---easy installation ,extensible,arbitrary combination

    8, Stable performance,suitable working for a long time



    CCTV Video Wall ​Applications

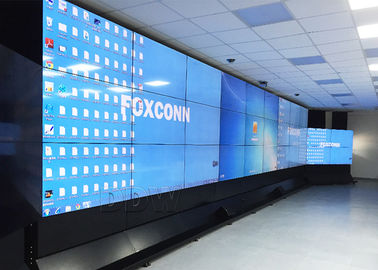

    This 46 inch 3.5mm narrow bezel video wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.



    CCTV Video Wall ​Panel Specifications

    LCD Technology SAMSUNG DID LCD
    Active Screen Diagonal 46" 16:9
    Bezel Width Total: 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 500cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH)

    0.53025×0.53025 mm

    Active Display Area(WxH)

    1018.08×572.67 mm

    Panel Dimension(WxHxD)

    1213.5x684.3x59 mm

    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    CCTV Video Wall ​Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    Packaging & Delivery

    Packaging Details: quality carton with full wood box packing

    Delivery Detail: 3 working days
