| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN14 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Seamless LCD Video Wall | Size: | 55 Inch |
|---|---|---|---|
| Panel Brand: | Samsung | Active Area: | 1209.6 × 680.4 Mm |
| Refresh Rate: | 60Hz | White Point: | 10,000 K |
| Working Temperature: | 0°-50°C | Contrast: | MEGA DCR |
| High Light: | ultra narrow bezel video wall,video wall lcd screens |
||

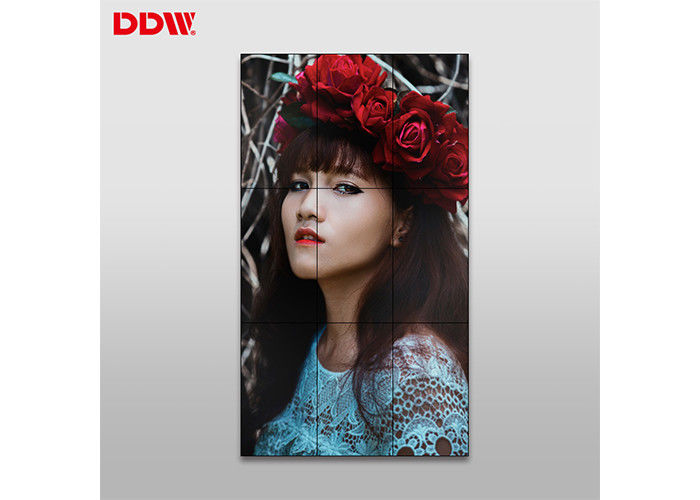

Samsung Panel Seamless LCD Video Wall , Colorful 55 Video Wall Display
Seamless LCD Video Wall Key features:
Seamless LCD Video Wall main parameters
1 FHD physical resolution 1920x1080
2 Only 1.7mm ultra narrow bezel, high quality ,practical ,good vision effect.
3 Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
4 HD video wall unit--- High brightness,high contrast,high gamut .
Seamless LCD Video Wall Application
Seamless LCD Video Wall Specifications:
| Name: | Seamless LCD Video Wall | Size: | 55 Inch |
|---|---|---|---|
| Panel Brand: | Samsung | Active Area: | 1209.6 × 680.4 Mm |
| Refresh Rate: | 60Hz | White Point: | 10,000 K |
| Working Temperature: | 0°-50°C | Contrast: | MEGA DCR |
Seamless LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
Seamless LCD Video Wall Details
