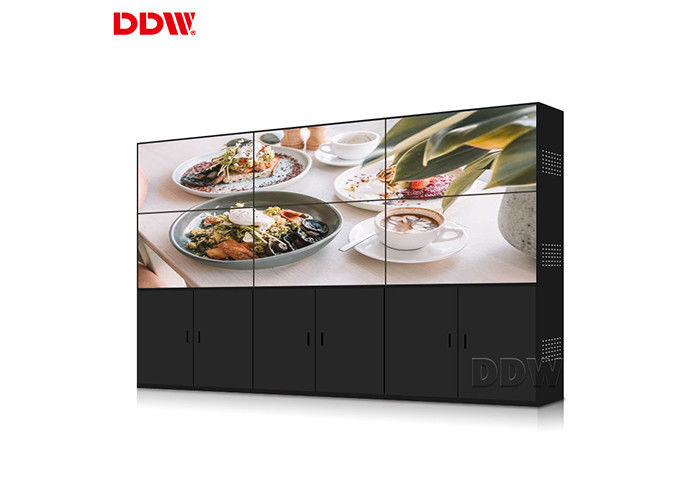

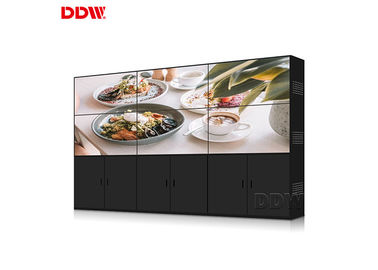

Vertical 3*3 LCD Video Wall Display For Exhibition And Show Center

Vertical 3*3 LCD Video Wall Display For Exhibition And Show Center

    • Vertical 3*3 LCD Video Wall Display For Exhibition And Show Center
  • Vertical 3*3 LCD Video Wall Display For Exhibition And Show Center

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550HN16

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Type: Vertical Brightness: 500 Nits
    Application: Exhibition And Show Center Refresh Rate: 60Hz
    Response Time: <=6ms Dot Pitch: 0.63x0.63 Mm
    Active Area: 1209.6 × 680.4 Mm
    High Light:

    ultra narrow bezel video wall

    ,

    multi screen video wall

    Vertical 3*3 LCD Video Wall Display For Exhibition And Show Center

    LCD Video Wall Display​ Application

    • surveillance and retail center
    • restaurant and hotel
    • retail shopping mall advertising and information displays
    • public installations
    • exhibition and show center
    • live show
    • rental and advertising center
    • museums
    • church

    LCD Video Wall Display​ main parameters

    1. Only 1.7 mm ultra narrow bezel, high quality ,practical ,good vision effect.
    2. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
    3. HD video wall unit--- High brightness,high contrast,high gamut .
    4. Flexible structure design ---easy installation ,extensible,arbitrary combination
    5. Stable performance,suitable working for a long time

    LCD Video Wall Display​ Specifications


    Model No:DDW-LW550HN16 LCD Video Wall Display​
    Active Screen Diagonal55"
    Pixel Pitch(WxH)

    0.63x0.63 mm

    Active Display Area(WxH)

    1209.6 × 680.4 mm

    Panel Dimension(WxHxD)

    1211.54 x 682.34x68.1mm

    Total Bezel Width1.7 mm
    Aspect Ratio16:9
    Physical Resolution1920x1080
    Backlight SystemLED
    Luminance(nits)500cd/sqm
    SurfaceAnti-glare
    Standby Power Consumption<3W
    Maximum Power Consumption<=250W
    Power SupplyAC100~240V 50/60 HZ
    CoolingLow noise fans
    Heat Dissipation819 BTU/h (max)
    Working Time Capacity7x24x365hours
    Application AreaIndoor/Semi Outdoor/Outdoor
    Working Temperature0°C~50°C
    Working Humidity85% non-condensing
    Storage Temperature-20-60°C | -4-149°F
    Storage Humidity85% non-condensing


    LCD Video Wall Display​​ ​Board Specification


    SupportPCcolor24bit
    signal Line synchronization range30-80KHZ
    Field synchronization range50-75HZ
    DVIcolor24bit
    HDMILine synchronization range30-80KHZ
    DPField synchronization range50-75HZ
    InterfaceinputVGA x 115pin D-Sub
    DVI x 1DVI-I
    DP x 1Display Port
    HDMI x 2HDMI-19 pin
    outputPANELLVDS 36Pin/2.0
    DP outDP loop out
    PowerInput powerDC24V/12V/5V
    Drive panel5V/12V
    Power modeNormal working mode, power saving mode
    OtherOSDChinese, English and other languages (other languages can be added as required)


    LCD Video Wall Display​ Details
    Vertical 3*3 LCD Video Wall Display For Exhibition And Show Center 0
