    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW490DUN-TJB1

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Video Wall LCD Screens Backlight: LED
    Refresh Rate: 60Hz Response Time: <=6ms
    Display Colors: 8Bit,16.7M Panel Width/mm: 1075.38
    Panel Height/mm: 605.8 Working Temperature: 0°C~50°C
    High Light:

    ultra narrow bezel video wall

    ,

    video wall lcd screens

    Indoor Outdoor Video Wall LCD Screens , Long Life Hdmi Video Wall

    Video Wall LCD Screens Features:

    1. Ultra-narrow border design of the current width
    2. Full-screen high definition display, up to 1080P
    3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone
    4. using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.
    5. Long life, stable operation, no burns, injuries, low maintenance costs
    6. A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.
    7. ultra-wide viewing angle technology extend, ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.

    Video Wall LCD Screens  main parameters

    •  500 nits brightness,MEGA DCR contrast
    •  FHD physical resolution 1920x1080
    •  Only 1.8 mm ultra narrow bezel, high quality ,practical ,good vision effect.
    •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
    •  FHD video wall unit--- High brightness,high contrast,high gamut .
    •  Flexible structure design ---easy installation ,extensible,arbitrary combination

    Video Wall LCD Screens Specifications


    Model No:

    DDW-LW490DUN-TJB1 Video Wall LCD Screens

    LCD TechnologyLG LCD
    Active Screen Diagonal49''
    Pixel Pitch(WxH)

    0.5593x0.5593mm

    Active Display Area(WxH)

    1073.8 × 604 mm

    Panel Dimension(WxHxD)

    1075.38x605.8x53.6mm

    Total Bezel Width1.8 mm
    Aspect Ratio16:9
    Physical Resolution1920x1080
    Backlight SystemLED
    Luminance(nits)500cd/sqm
    Contrast5000:1 (typ.)
    Viewing AngleH 178°|V 178°
    Display Colors8Bit,16.7M
    Refresh Rate60Hz
    Response Time<=6ms
    Life(hrs)>60,000(hrs)
    MTBF> 100,000h
    SurfaceAnti-glare
    Application AreaIndoor/Semi Outdoor/Outdoor
    Working Temperature0°C~50°C
    Working Humidity85% non-condensing
    Storage Temperature-20-60°C | -4-149°F
    Storage Humidity85% non-condensing


    Video Wall LCD Screens Board Specification


    SupportPCcolor24bit
    signal Line synchronization range30-80KHZ
    Field synchronization range50-75HZ
    DVIcolor24bit
    HDMILine synchronization range30-80KHZ
    DPField synchronization range50-75HZ
    PowerInput powerDC24V/12V/5V
    Drive panel5V/12V
    Power modeNormal working mode, power saving mode
    OtherOSDChinese, English and other languages (other languages can be added as required)

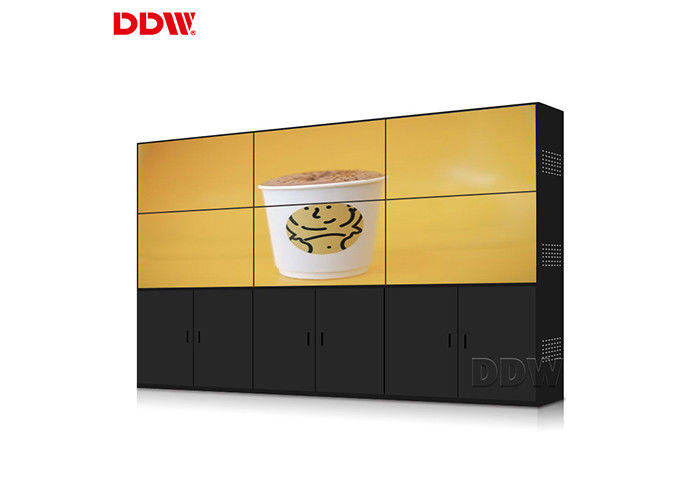

    Video Wall LCD Screens Details
    Indoor Outdoor Video Wall LCD Screens , Long Life Hdmi Video Wall 0
