Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control

Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control

    • Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control
  • Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW490DUN-THC1

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Type: Wall Mounted Product Name: LCD Video Wall Display
    Input Voltage: AC 220v-250v MTBF: > 100,000h
    Control: Matrix Joint Control Dot: 0.5593x0.5593
    Total Physical Bezel: 3.5mm Dot Pitch: 0.5593x0.5593mm
    High Light:

    ultra narrow bezel video wall

    ,

    video wall lcd screens

    Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control



    LCD Video Wall Display Features

    1. Automatic adjustment of backlight and refresh rate for extended life
    2. Exclusive software plus black technology to ensure image reproduction is realistic
    3. Intelligent wireless control is convenient for high-definition image switching
    4. 3D digital noise reduction, HD high definition
    5. Embedded structural design patent

    LCD Video Wall Display main parameters



    1. Original DDW commercial grade lcd video wall display panel ,16:9 LG TFT-LCD

    2. 500 nits brightness,MEGA DCR contrast

    3. FHD physical resolution 1920x1080

    4. Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.

    5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6. FHD video wall unit--- High brightness,high contrast,high gamut .



    LCD Video Wall Display Specifications



    Model No: DDW-LW490DUN-THC1 LCD Video Wall Display
    LCD Technology LG LCD
    Active Screen Diagonal 49''
    Pixel Pitch(WxH)

    0.5593x0.5593 mm

    Active Display Area(WxH)

    1073.8 × 604 mm

    Panel Dimension(WxHxD)
    1077.6x607.8x55.6 mm
    Total Bezel Width 3.5 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backlight System LED
    Luminance(nits) 500cd/sqm
    Contrast 5000:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing



    LCD Video Wall Display Board Specifications



    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Other OSD Chinese, English and other languages (other languages can be added as required)

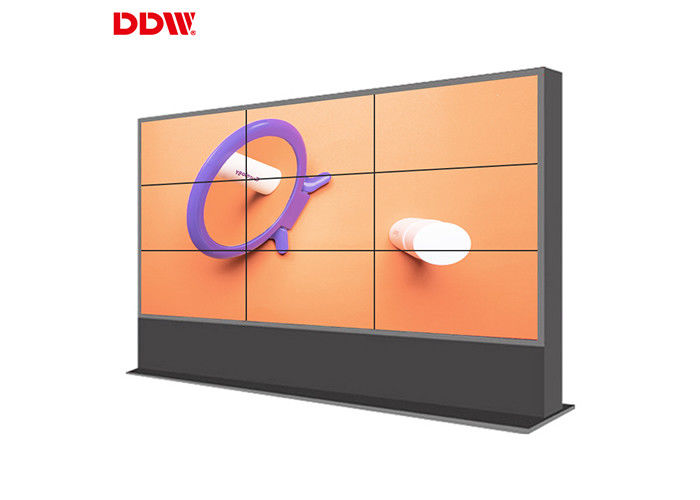

    LCD Video Wall Display Picture

    Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control 0
