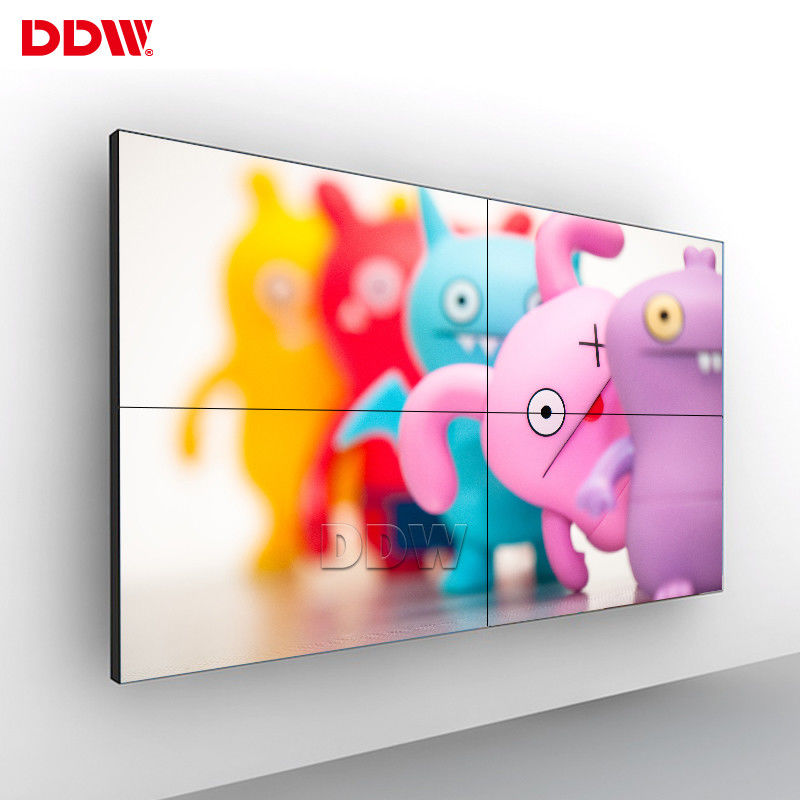

Name: Wall - Mounted Commercial Video Wall For CCTV Control Room Conference
Brand: Shenzhen DDW Technology Co., Ltd.
SKU: DDW-DV490FHM-NV0
Availability: InStock

Home Products Commercial Video Wall

Wall - Mounted Commercial Video Wall For CCTV Control Room Conference

Product Details:

Place of Origin:	Guangdong , China (Mainland)
Brand Name:	DDW
Certification:	ISO9001 , CE , RoHS , FCC
Model Number:	DDW-DV490FHM-NV0

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	Negotiable
Packaging Details:	First layer carton pack with filling foam , then wood pallet pack
Delivery Time:	3 working days upon payment
Payment Terms:	T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability:	3 , 000pcs per month

Contact Now

Detailed Product Description

Name:	Commercial Video Wall	Bezel Width:	3.5 Mm
Surface:	Anti-glare	Brightness:	500 Nits
Mount:	Wall - Mounted	Active Area:	1074.24 × 604.26 Mm
Panel Width:	1077.6 Mm	Panel Height:	607.8 Mm
Highlight:	multi display video wall , seamless lcd video wall

Wall - Mounted Commercial Video Wall For CCTV Control Room Conference

Commercial Video Wall informations:

With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
The installation method: front push hydraulic pop out;
Dot Pitch: 0.5595 mm x 0.5595 mm; Contrast ratio: 4000:1; Responsive time: 6ms;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year

Commercial Video Wall Applications

Commercial Video Wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.

Commercial Video Wall Specifications

Model No:	DDW-DV490FHM-NV0 Commercial Video Wall
Active Screen Diagonal	49 inch
TotalBezel Width	3.5 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Panel Dimension(WxHxD)	1077.6x607.8x59.67mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

Commercial Video Wall Board Specifications

Support	PC	Color	24bit
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
