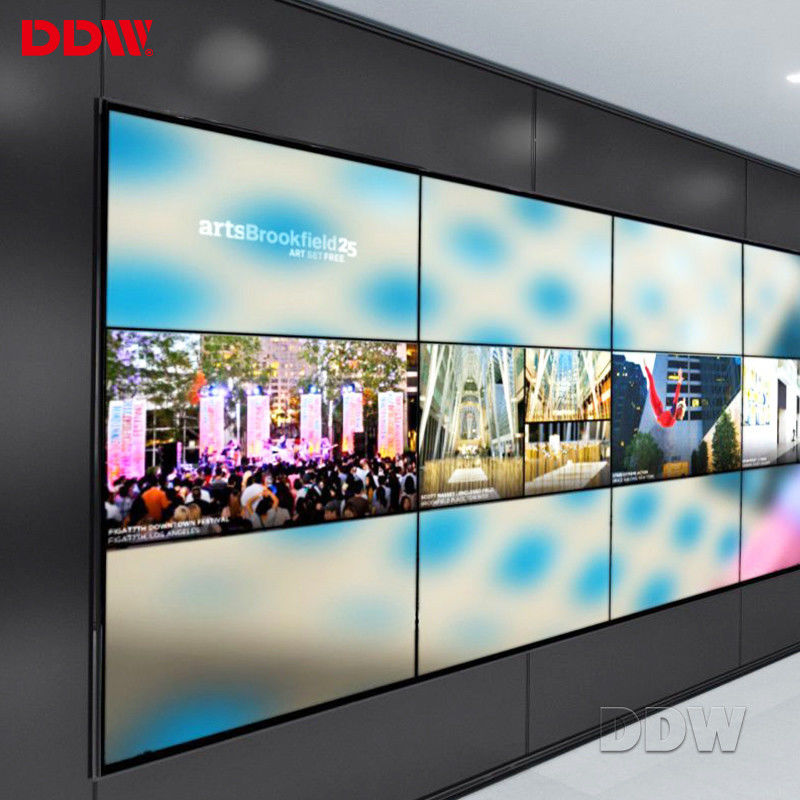

16/9 Aspect Ratio 55 Inch Video Wall / Light Weight LCD Video Wall Display

16/9 Aspect Ratio 55 Inch Video Wall / Light Weight LCD Video Wall Display

16/9 Aspect Ratio 55 Inch Video Wall / Light Weight LCD Video Wall Display

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-THA3

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Name: 55 Inch Video Wall Bezel Width: 1.8 Mm
Brightness/nits: 700 Backlight: LED
Active Area: 1209.6×680.4mm Aspect Ratio: 16:9
Working Humidity: 0.85 Application: CCTV Control Room Conference

16:9 Aspect Ratio 55 Inch Video Wall / Light Weight LCD Video Wall Display


55 Inch Video Wall Introduction


Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.


55 Inch Video Wall key features:

  •  Panel size: 46″, 49″, 55″, 60″ Optional
  •  Ultra narrow frame design, the narrowest bezel is 1.8mm and the bezel can be optional.
  •  Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
  •  Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;


55 Inch Video Wall Specifications:


Model No: DDW-LW550DUN-THA3 55 Inch Video Wall
Active Screen Diagonal 55''
Total Bezel Width 1.8 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.63x0.63 mm

Active Display Area(WxH)


Panel Dimension(WxHxD)

1211.4x682.2x53.3 mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing


About Us


Shenzhen DDW Technology Co.,Ltd started in 2009, a leading manufacturer and developer of commercial LCD displays withown facility 7000sqm in China. We focus on customized Indoor outdoor digital totems, touch screen kiosk, Stretched Bar LCD,LCD video wall system,video wall controller and more LCD display solutions. With high quality standard, meticulous workmanship, strict quality control,professional service, DDW aims to provide our customers, distributors and suppliers with win-win cooperation.


Our Product:


1) Indoor digital signage systems;

2) Outdoor LCD digital totems;

3) UNB LCD video walls;

4) Hardware video wall controllers;

5) Stretched bar LCD displays;

6) Indoor Outdoor LED displays.
