| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-TKB1 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Viewing Angle: | 178x178 | Bezel Width: | 3.5mm |
|---|---|---|---|
| Surface: | Anti-glare | Brightness: | 500 Nits |
| Product Name: | Lcd Screen Wall | Backlight: | LED |
| Resolution: | 1920*1080 | Input Voltage: | AC 220v-250v |
| High Light: | multi display video wall,seamless lcd video wall |
||

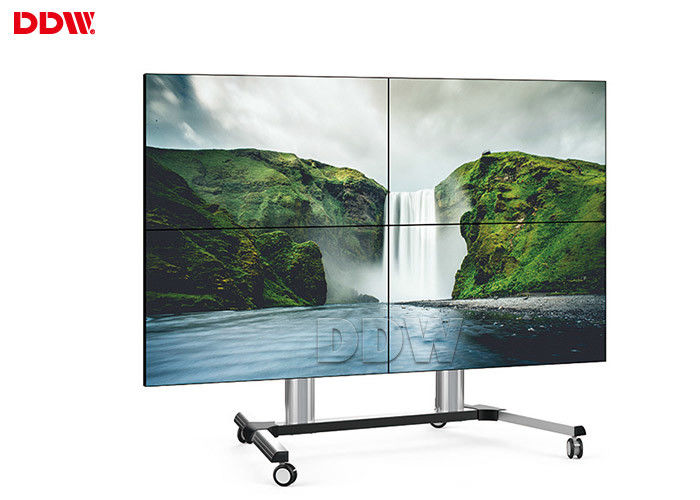

Commercial Grade Lcd Screen Wall / Multi Touch Video Wall RS232 Input Output
Lcd Screen Wall informations:
With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
7x24x365 keep working;
Lcd Screen Wall parameters
1. Original DDW commercial grade lcd video wall display panel
2. 500 nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Flexible structure design ---easy installation ,extensible,arbitrary combination
5. Stable performance,suitable working for a long time
Commercial Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
8. Input by remote control with wire, mobile receiver head.
Lcd Screen Wall Specifications:
| Viewing Angle: | 178x178 | Bezel Width: | 3.5mm |
|---|---|---|---|
| Surface: | Anti-glare | Brightness: | 500 Nits |
| Product Name: | Lcd Screen Wall | Backlight: | LED |
| Resolution: | 1920*1080 | Input Voltage: | AC 220v-250v |
Lcd Screen Wall CD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
