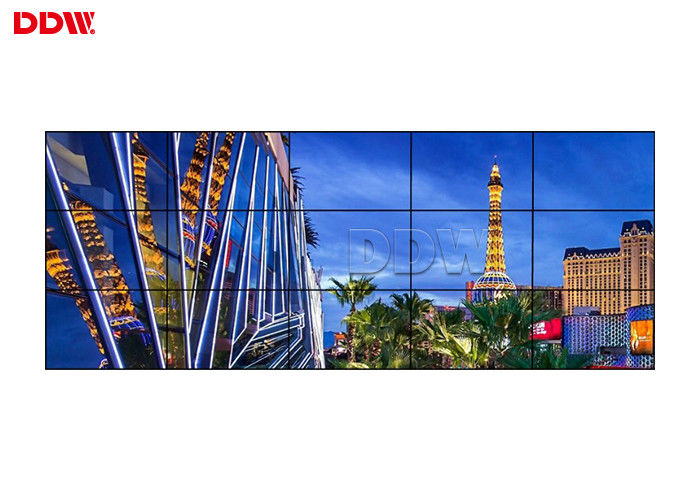

Samsung Panel Commercial Video Wall For Public Installations / Show Center

Samsung Panel Commercial Video Wall For Public Installations / Show Center

Samsung Panel Commercial Video Wall For Public Installations / Show Center

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN14

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Panel Size: 55 Inch Bezel Width: 1.7 Mm
Application: Public Installations / Show Center Brightness: 700 Nits
Product Name: Commercial Video Wall Panel Brand: Samsung
Cooling: Low Noise Fans Refresh Rate: 60Hz
High Light:

lcd screen wall


seamless lcd video wall

Samsung Panel Commercial Video Wall For Public Installations / Show Center



Commercial Video Wall Key features:

  •  Built-in splicing module, Support splice function
  •  Support creating one window PIP across the screen, roaming service, scaling,PIP
  •  Unique DNX motion supplement image processing technology,
  •  Dynamic image without motion trail
  •  Splicing image processing RS-232 RJ45 loop-circuit input/output.
  •  Input by remote control with wire, mobile receiver head.


Commercial Video Wall main parameters


1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD

2. 700nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .

3. Only 1.7mm ultra narrow bezel, high quality ,practical ,good vision effect.

4. Stable performance,suitable working for a long time


Commercial Video Wall Application


Advertising Commercial Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.


Commercial Video Wall  Specifications:


Model No: DDW-LW550HN14 Commercial Video Wall
Active Screen Diagonal 55"
Bezel Width Total: 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.63x0.63 mm

Active Display Area(WxH)

1209.6 × 680.4 mm

Panel Dimension(WxHxD)


White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing


Commercial Video Wall Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ




Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.

DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
