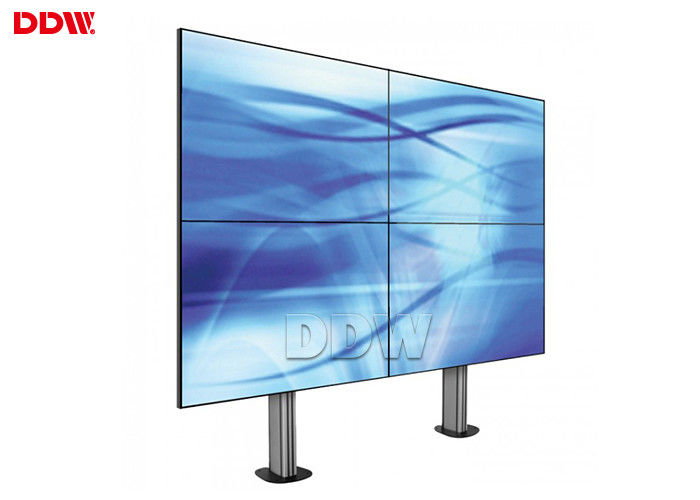

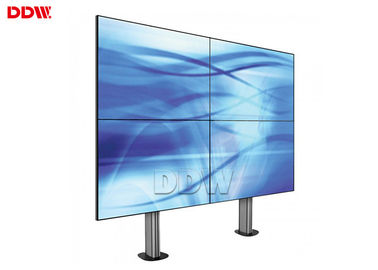

Flexible Structure Design Commercial Video Wall Built In Splicing Module

Flexible Structure Design Commercial Video Wall Built In Splicing Module

    • Flexible Structure Design Commercial Video Wall Built In Splicing Module
  • Flexible Structure Design Commercial Video Wall Built In Splicing Module

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW460HN09

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Resolution: 1920*1080 Bezel Width: 5.3 Mm
    Design: Flexible Structure Design Brightness: 500 Nits
    Product Name: DDW LCD Video Wall Backlight: LED
    Panel Width: 1023.98mm Panel Height: 578.57mm
    High Light:

    lcd screen wall

    ,

    seamless lcd video wall

    Flexible Structure Design Commercial Video Wall Built In Splicing Module





    parameters of Commercial Video Wall



    1. Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD

    2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .

    3. FHD physical resolution 1920x1080

    4. Only 5.3 mm ultra narrow bezel, high quality ,Practical ,good vision effect.

    5. Flexible structure design ---easy installation ,extensible,arbitrary combination

    6. Stable performance,suitable working for a long time



    Application of Commercial Video Wall:



    Commercial Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



    Commercial Video Wall Key features:



    1. Support a variety of signal ports.

    2. Built-in splicing module, Support splice function

    3. Support creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Splicing image processing RS-232 RJ45 loop-circuit input/output.

    6. Input by remote control with wire, mobile receiver head.



    Commercial Video Wall Specifications



    Resolution: 1920*1080 Bezel Width: 5.3 Mm
    Design: Flexible Structure Design Brightness: 500 Nits
    Product Name: DDW LCD Video Wall Backlight: LED
    Panel Width: 1023.98mm Panel Height: 578.57mm



    Video Wall Borad Specifications



    Support PC Color 24bit
    signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)
