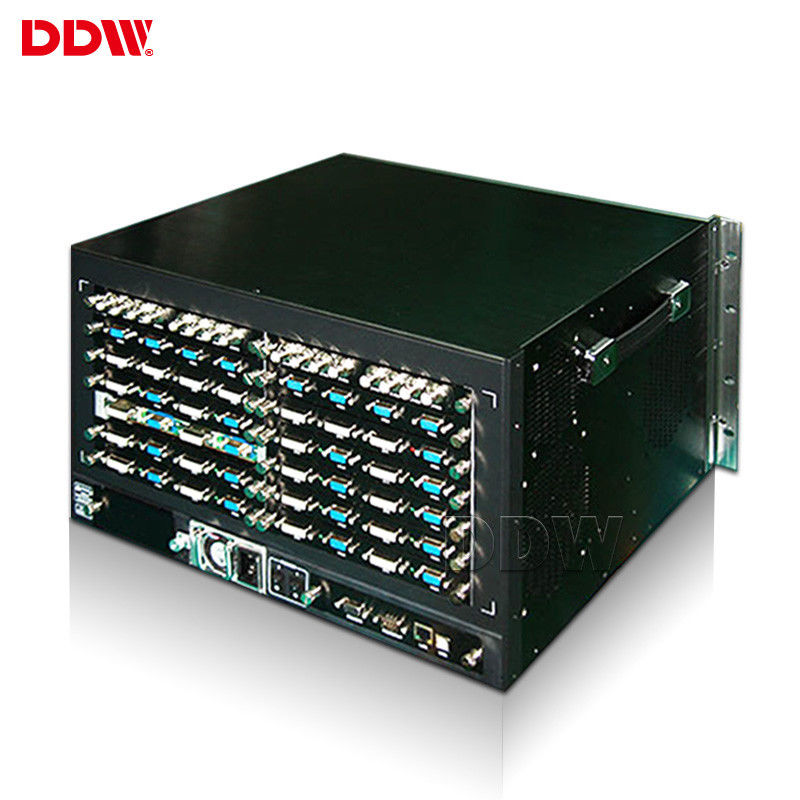

YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room

YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room

    • YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room
    • YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room
    • YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room
  • YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VPH3636

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Output Resolution: 1920*1080,1920*1200 Max PIP Per Screen: 1,4,16,customization
    Product Name: PC Video Wall Controller Maximum Input Numbers: 36
    Maximum Output Numbers: 36 Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
    Control Method: RS232,LAN Baud Rate: 115200
    High Light:

    vga video wall processor

    ,

    multi display controller

    HDMI VGA PC Video Wall Controller 36 Input 36 Output For Conference Room




    Support PC, mobile control software pre-monitoring display

    •  Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
    •  The operating signal source can be selected more intuitively as needed;
    •  On the interface, you can view large-screen real-time echo images to improve the operator’s work efficiency and prevent misuse;

    PC Video Wall Controller​ key features:

    •  With special virtual display technology, full channel real HD 1080P signal processing;
    •  Signal Preview function available;
    •  Supporting PC, Android APK, iOS APP control software;
    •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
    •  Scaling and positioning, size is scalable and position adjustable;
    •  With background logo display function. It can be customized;
    •  Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;


    DDW PC Video Wall Controller Technical Specifications

    Model series With CBD Function No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input,

    support multiple splicing player freely , and can show different

    sigal at the same time to the system,require screen built in daisy chain board

    ~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
    VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
    HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
    YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
    SDI(customizable) BNC Port ~
    AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
    Input resolution up to 4K,commonly used resolutions
    Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
    HDMI, DVI, 4K-DVI HDMI, DVI output ~
    3G SDI(customzable) BNC Port loop out ~
    AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
    Output resolution up to 4K,commonly used resolutions
    Control Standard RS232 port
    IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs



    Hareware video wall controller U Chassis Specs

    Chassis U size Controller Dims(mm)
    L*W*H
    Pack dims(mm)
    L*W*H
    N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
    2U 406×440×102 590×530×190 11.25 12.25 8 8 200
    3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
    7U 442×402×320 590×530×460 29.5 31.50 32 32 400
    12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
    23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300


    YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room 0YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room 1YPBPR IP PC LED Video Wall Controller 36 Input Output For Multi Screen Display Conference Room 2
