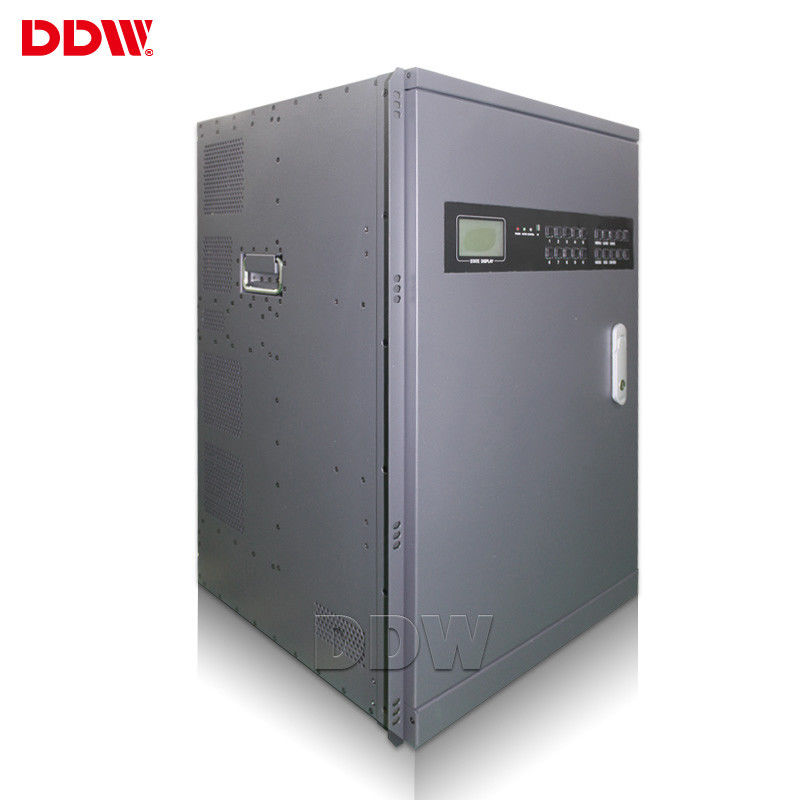

DVI PC Video Wall Controller 4x4 Software HDMI 1920*1080 RS232 LAN Control

DVI PC Video Wall Controller 4x4 Software HDMI 1920*1080 RS232 LAN Control

    • DVI PC Video Wall Controller 4x4 Software HDMI 1920*1080 RS232 LAN Control
    • DVI PC Video Wall Controller 4x4 Software HDMI 1920*1080 RS232 LAN Control
    • DVI PC Video Wall Controller 4x4 Software HDMI 1920*1080 RS232 LAN Control
  • DVI PC Video Wall Controller 4x4 Software HDMI 1920*1080 RS232 LAN Control

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC , 3C
    Model Number: DDW-VPH4848

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Input/output: 48X48 Input/Output Resolution: 1920*1080
    Product Name: PC Video Wall Controller Max PIP Per Screen: 1,4,16,customization
    Color Quality: 32bit Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
    Control Method: RS232,LAN Working Humidity: 5-95%

    Multi Signal Hdmi 4K PC Video Wall Controller Software Hdmi DDW-VPH4848 1920*1080




    PC Video Wall Controller key features:

    •  With special virtual display technology, full channel real HD 1080P signal processing;
    •  Signal Preview function available;
    •  Supporting PC, Android APK, iOS APP control software;
    •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
    •  Scaling and positioning, size is scalable and position adjustable;
    •  With background logo display function. It can be customized;
    •  Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

    Pure hardware architecture board any combination:

    •  Industrial chassis with CPCI structure;
    •  Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
    •  Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;

    Multi – group video wall management:

    •  It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
    •  Setting different resolutions, adjust colors and other parameters.


    DDW PC Video Wall Controller Technical Specifications

    Model series With CBD Function No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input,

    support multiple splicing player freely , and can show different

    sigal at the same time to the system,require screen built in daisy chain board

    ~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
    VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
    HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
    YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
    SDI(customizable) BNC Port ~
    AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
    Input resolution up to 4K,commonly used resolutions
    Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
    HDMI, DVI, 4K-DVI HDMI, DVI output ~
    3G SDI(customzable) BNC Port loop out ~
    AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
    Output resolution up to 4K,commonly used resolutions
    Control Standard RS232 port
    IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs



    Hareware video wall controller U Chassis Specs

    Chassis U size Controller Dims(mm)
    L*W*H
    Pack dims(mm)
    L*W*H
    N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
    2U 406×440×102 590×530×190 11.25 12.25 8 8 200
    3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
    7U 442×402×320 590×530×460 29.5 31.50 32 32 400
    12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
    23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300
