Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | DDW |
Certification: | ISO9001 ,CE , RoHS , FCC , 3C |
Model Number: | DDW-VPH0404 |
Minimum Order Quantity: | 1 Unit/Units |
---|---|
Price: | Negotiable |
Packaging Details: | Double layer carton pack |
Delivery Time: | 3working days upon payment |
Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
Supply Ability: | 1000pcs/month |
Output Resolution: | 1920x1080 | Max PIP Per Screen: | 1,4,16,customization |
---|---|---|---|
Applications: | Conference Room | Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP |
Product Name: | Video Wall Control Box | Baud Rate: | 115200 |
Working Time: | 365x7x24hrs | Consumption: | 12W/channel |
High Light: | hd video controller,lcd video wall controller |

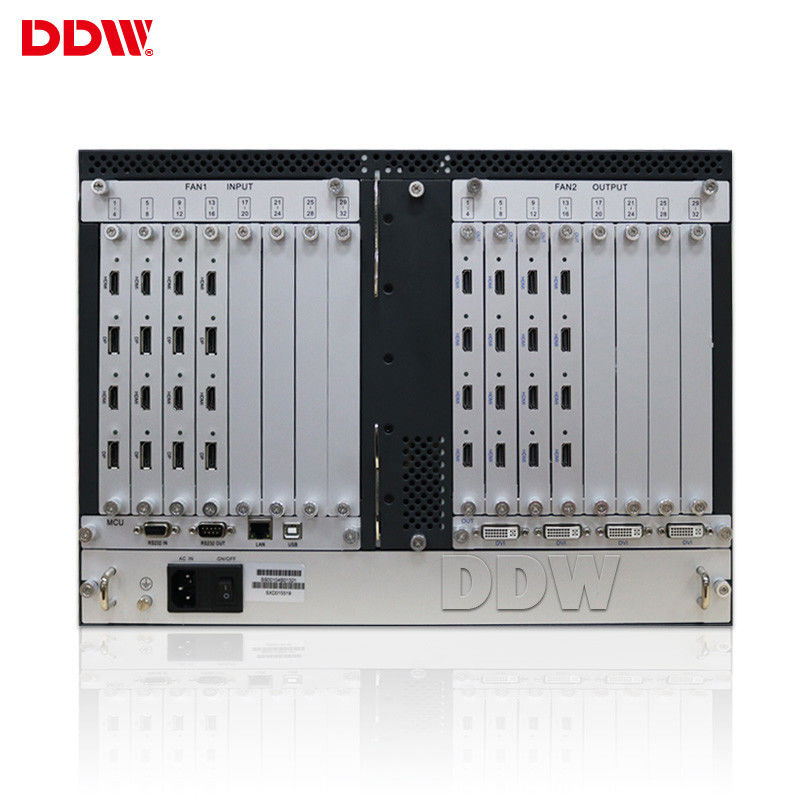

1920x1080 Video Wall Control Box For 4x4 LCD Video Wall System HDMI DVI VGA
Video Wall Control Box Introduction
DDW Video Wall Processor is one of professional modularized and hardware Video wall processor which supports HDMI,DVI,VGA,AV,YPBPR, each channel support 1920 x1200 resolution signal inputs and outputs,RS232 and IP control method.Video wall processor can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
Video Wall Control Box key features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7 x 24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920 x 1200
Video Wall Control Box Technical Specifications
Model series | With CBD | Function | No CBD | ||||
Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | ~ | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays | ||||
Input signal(optional) | CVBS | Support PAL/NTSC format, multiple BNC ports | ~ | ||||
VGA/RGBHV | Multi-channel VGA DB-15 ports, support VGA full-format input | ~ | |||||
HDMI, DVI, 4K-DVI, IP | Support 4K(3840x2160) input, each IP decode 4 channels | ~ | |||||
YPbPr, YCbCr(customizable) | The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV | ~ | |||||
SDI(customizable) | BNC Port | ~ | |||||
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; | ~ | ~ | |||||
Input resolution | up to 4K,commonly used resolutions | ||||||
Output signal format | VGA, RGBHV | signal channel XGA(1024x768@60Hz)/DB-15 port | ~ | ||||
HDMI, DVI, 4K-DVI | HDMI, DVI output | ~ | |||||
3G SDI(customzable) | BNC Port loop out | ~ | |||||
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; | ~ | ~ | |||||
Output resolution | up to 4K,commonly used resolutions | ||||||
Control | Standard RS232 port | ||||||
IR remote control(customzable), LAN contril, IOS, Android APP control( optional) | |||||||
System control software | Special control software | ||||||
Power Supply | Redundant power supply 110-220VAC, 50/60Hz | ||||||
Consumption | 12W/channel | ||||||
Working temperature | -20°C——60°C | ||||||
Working Humidity | 5-95% | ||||||
Case specification | 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis | ||||||
Serial Control Interface | RS-232,9-pin female, Type-D | ||||||
Baud Rate | 115200 | ||||||
Pin configuration | 2=TX,3=RX,5=GND | ||||||
Ethernet control interface | RJ-45 female, TCP/IP | ||||||
Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | ||||||
Working time | 365x7x24hrs |
Hareware video wall controller U Chassis Specs
Chassis U size | Controller Dims(mm) L*W*H |
Pack dims(mm) L*W*H |
N.W(kg) | G.W(kg) | Max input Nos. | Max output Nos. | Max Power Consumption(Watts) |
2U | 406×440×102 | 590×530×190 | 11.25 | 12.25 | 8 | 8 | 200 |
3.5U | 450x440x170 | 620x620x270 | 18.25 | 19.25 | 16 | 16 | 320 |
7U | 442×402×320 | 590×530×460 | 29.5 | 31.50 | 32 | 32 | 400 |
12.5U | 446×440×553 | 625×580×725 | 37.85 | 39.85 | 71 | 68 | 750 |
23U | 442×43×1022 | 615×570×1180 | 80.46 | 82.46 | 143 | 140 | 1300 |
