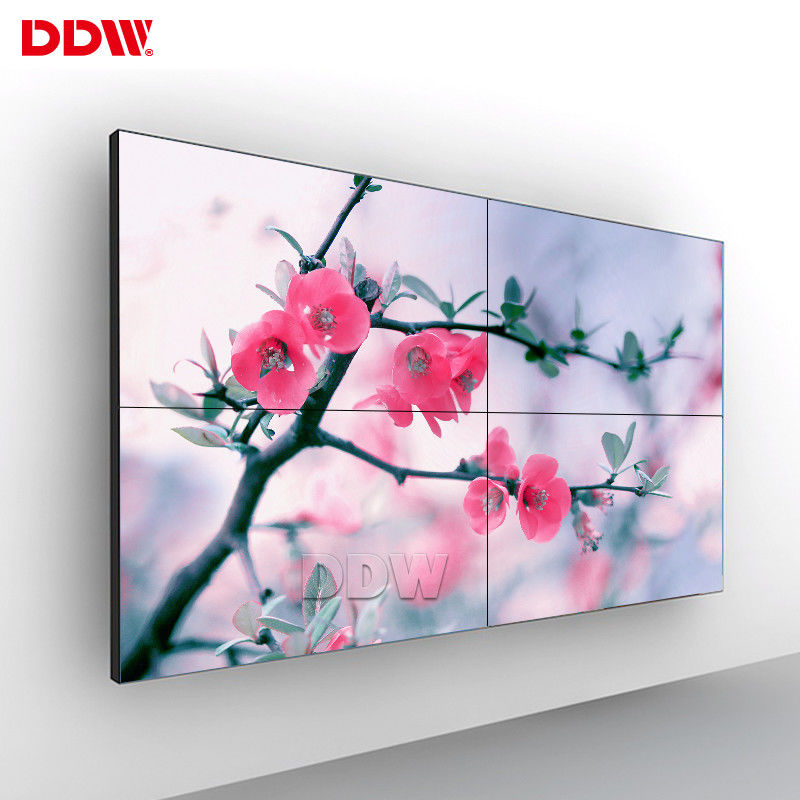

Wall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall Display

Wall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall Display

    • Wall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall Display
    • Wall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall Display
    • Wall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall Display
    • Wall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall Display
  • Wall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall Display

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550HN16

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Surface: Anti-glare Brightness: 500 Nits
    Product Name: Commercial Video Wall Backlight: LED
    Refresh Rate: 60Hz Response Time: <=6ms
    Dot Pitch: 0.63x0.63 Mm Active Area: 1209.6 × 680.4 Mm
    High Light:

    ultra narrow bezel video wall

    ,

    multi screen video wall

    Wall Mounted LCD Video Wall Display Ultra Narrow Bezel RS232 Control LW550HN16





    LCD Video Wall Display​ Application

    LCD Video Wall Display can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



    LCD Video Wall Display​ Key features:

    1. Support a variety of signal ports.

    2. Built-in splicing module, Support splice function

    3. Support creating one window PIP across the screen, roaming service, scaling,PIP

    4. Support matrix joint control.

    5. Unique DNX motion supplement image processing technology,

    6. Dynamic image without motion trail

    7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

    8. Input by remote control with wire, mobile receiver head.



    55 inch​ LCD Video Wall Display​ main parameters

    1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD

    2. 500 nits brightness,MEGA DCR contrast

    3. FHD physical resolution 1920x1080

    4. Only 1.7 mm ultra narrow bezel, high quality ,practical ,good vision effect.

    5. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    6. HD video wall unit--- High brightness,high contrast,high gamut .

    7. Flexible structure design ---easy installation ,extensible,arbitrary combination

    8. Stable performance,suitable working for a long time



    LCD Video Wall Display​ Specifications

    Model No: DDW-LW550HN16
    Active Screen Diagonal 55"
    Pixel Pitch(WxH)

    0.63x0.63 mm

    Active Display Area(WxH)

    1209.6 × 680.4 mm

    Panel Dimension(WxHxD)

    1211.54 x 682.34x68.1mm

    Total Bezel Width 1.7 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backlight System LED
    Luminance(nits) 500cd/sqm
    Contrast 5000:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing



    LCD Video Wall Display​ ​Board Specification

    Support PC color 24bit
    signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    DVI color 24bit
    HDMI Line synchronization range 30-80KHZ
    DP Field synchronization range 50-75HZ
    Interface input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)



    Wall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall DisplayWall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall DisplayWall Mounted Ultra Narrow Bezel LCD Video Wall , Retail Shopping Mall 4K Video Wall Display
