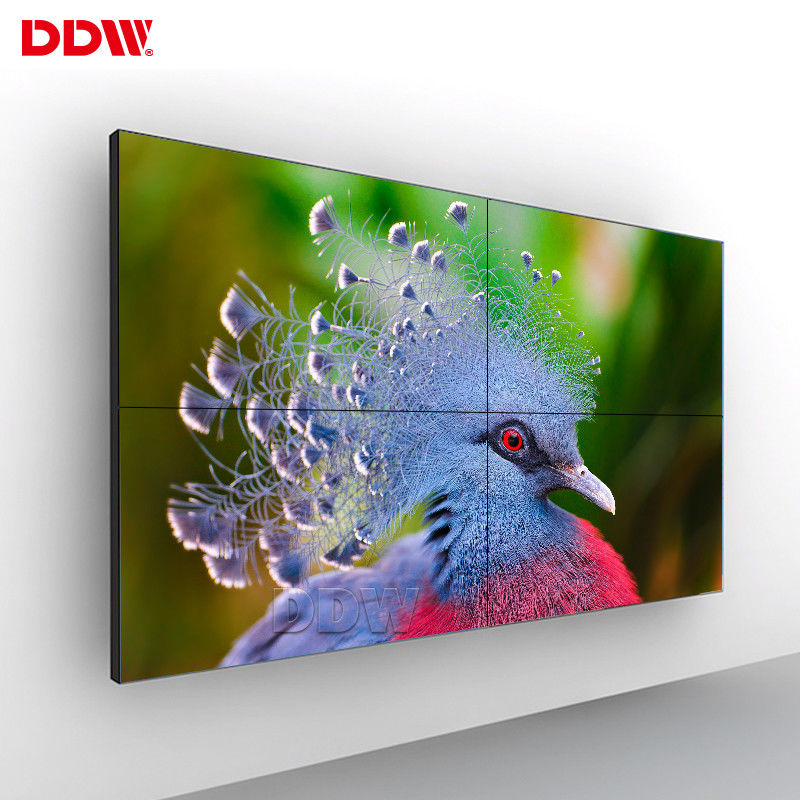

Seamless LCD Video Wall Display 46 Inch 178 Degree Viewing Angle Refresh Rate 60Hz

Seamless LCD Video Wall Display 46 Inch 178 Degree Viewing Angle Refresh Rate 60Hz

    • Seamless LCD Video Wall Display 46 Inch 178 Degree Viewing Angle Refresh Rate 60Hz
    • Seamless LCD Video Wall Display 46 Inch 178 Degree Viewing Angle Refresh Rate 60Hz
    • Seamless LCD Video Wall Display 46 Inch 178 Degree Viewing Angle Refresh Rate 60Hz
    • Seamless LCD Video Wall Display 46 Inch 178 Degree Viewing Angle Refresh Rate 60Hz
  • Seamless LCD Video Wall Display 46 Inch 178 Degree Viewing Angle Refresh Rate 60Hz

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW460HN13

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: LCD Video Wall Display Resolution: 1920*1080
    Input Voltage: AC 220v-250v Total Physical Bezel: 1.7mm
    Refresh Rate: 60Hz Dimension: 1020.02x574.61 Mm
    Luminance: 700 Nits Working Humidity: 0.85

    178 Degree Viewing Angle LCD Video Wall Display Seamless 46 Inch LW460HN13





    Narrow Bezel:

    •  46 inch LCD video wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;
    •  LCD Video Wall show commercial advertisement, food picture, video play, product picture;

    View Angle

    •  178 degree wide viewing angle, the full range of display;
    •  Different modules optional: such as heating module, built in camera, air conditioner etc;

    HD Panel Display

    •  HD video wall unit: high brightness, contrast and gamut.
    •  Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;

    LCD Video Wall Display​ Functions:

    •  Supporting 225 units (15×15) multi-matrix;
    •  Single screen display. Each unit can display the picture independently;
    •  Image overlay. Superimposed on screen another picture;
    •  Easy to choose full screen or multi-screen display by control video wall controller.

     Panel dimension and interfaces:

    •  Dimension: 1020.02x574.61 mm;
    •  Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

    Total bezel width

    •  Bezel size: 1.7 mm;
    •  The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

    Connection topology and applications:

    •  Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;
    •  Applications: Financial center, real estate center, security room, cinema, theater, etc;



    LCD Video Wall Display​ Specifications:

    Model No: DDW-LW460HN13
    LCD Technology SAMSUNG LCD
    Active Screen Diagonal 46 Inch
    Total Bezel Width 1.7 mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System LED
    Luminance(nits) 700 cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Panel Dimension(WxHxD)
    1020.02x574.61x68.1mm
    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing



    LCD Video Wall Display​ Board Specifications

    Support PC Color 24bit
    Signal   Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ

    DVI

    HDMI

    DP

    Color 24bit
    Line synchronization range 30-80KHZ
    Field synchronization range 50-75HZ
    Interface Input VGA x 1 15pin D-Sub
    DVI x 1 DVI-I
    DP x 1 Display Port
    HDMI x 2 HDMI-19 pin
    Output PANEL LVDS 36Pin/2.0
    DP out DP loop out
    Power Input power DC24V/12V/5V
    Drive panel 5V/12V
    Power mode Normal working mode, power saving mode
    Other OSD Chinese, English and other languages (other languages can be added as required)
