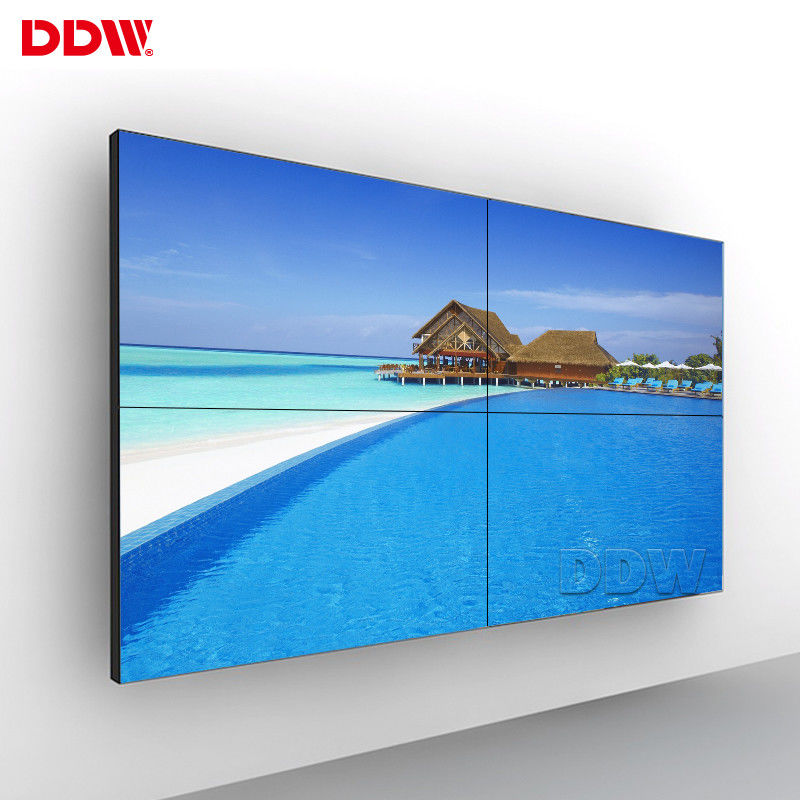

Rich Color Multi Display Video Wall , 46 Video Wall Display 16:9
Multi Display Video Wall main parameters
- FHD physical resolution 1920x1080
- Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.
- Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- Flexible structure design --- easy installation ,extensible,arbitrary combination
Multi Display Video Wall Application
onference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Multi Display Video Wall features:
- Built-in splicing module, support splice function
- Support creating one window PIP across the screen, roaming service, scaling,PIP
- Support matrix joint control.
- Splicing image processing RS-232 RJ45 loop-circuit input/output.
- Input by remote control with wire, mobile receiver head.
Multi Display Video Wall Specifications:
| Model No: |
DDW-LW460HN11 |
| LCD Technology |
SAMSUNG Panel |
| Active Screen Diagonal |
46 Inch |
| Total Bezel Width |
3.5mm |
| Aspect Ratio |
16:9 |
| Backight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Pixel Pitch(WxH) |
0.5302x0.5302mm
|
| Active Display Area(WxH) |
1018.08×572.67 mm
|
| Panel Dimension(WxHxD) |
1021.98×576.57x72.1mm |
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Humidity |
85% non-condensing |
FAQ
Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
Q: How does your factory do regarding quality control?
A:Quality is priority.DDW people always attach great importance to quality controlling from the
very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities
of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG,AUO and CHIMEI screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:if you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send me email,you can call me or skype me,i will reply you ASA
Multi Display Video Wall Details
